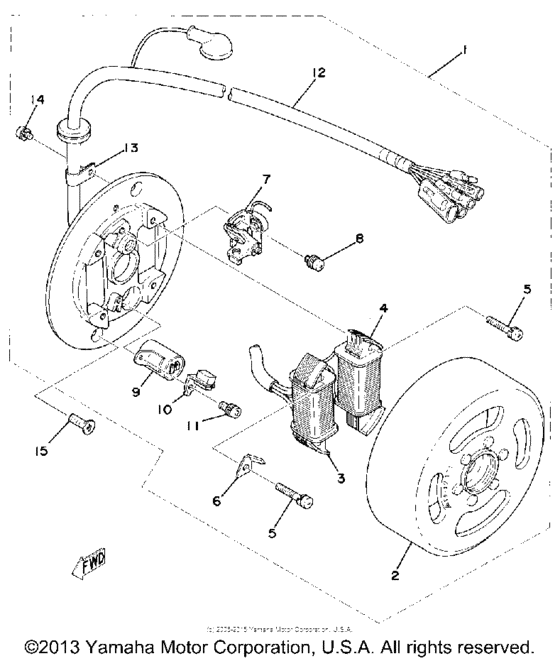

Flywheel & magneto Diagram Yamaha RS100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RS100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
465-81300-70-00
Flywhl Magneto Assembly
M5-081 |
465-81300-70-00 |
— | ||
|
2
|
2
1L1-81350-20-00
Rotor Assembly
|
1L1-81350-20-00 |
— | ||
|
3
|
3
2U7-81312-21-00
Coil, Source
M5-081 |
2U7-81312-21-00 |
— | ||
|
4
|
4
594-81313-20-00
Coil, Lighting 1
M5-081 |
594-81313-20-00 |
— | ||
|
5
|
5
97602-04125-00 Screw, Pan Head With Washer |
97602-04125-00 |
US $1.21 |
||
| replacement | |||||
|
5
|
5
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
6
|
6
353-81332-20-00
Plate, Timing
|
353-81332-20-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
2A6-81321-20-00 Contact Brkr Assemblyassy |
2A6-81321-20-00 |
from US $56.34 |
||
|
8
|
8
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
9
|
9
1K8-81325-20-00 Condenser 1M5-081 |
1K8-81325-20-00 |
from US $46.28 |
||
|
10
|
10
116-81331-20-00 Lubricator |
116-81331-20-00 |
US $4.41 |
||
|
11
|
11
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
12
|
12
465-81315-70-00
Lead Wire Assembly
M5-081 |
465-81315-70-00 |
— | ||
|
13
|
13
109-81328-11-00
Clamp
|
109-81328-11-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
976-01041-06-00
Screw, Pan Head With Washer
|
976-01041-06-00 |
— | ||
| replacement | |||||
|
14
|
14
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
15
|
15
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
15
|
15
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $1.36 |
||
