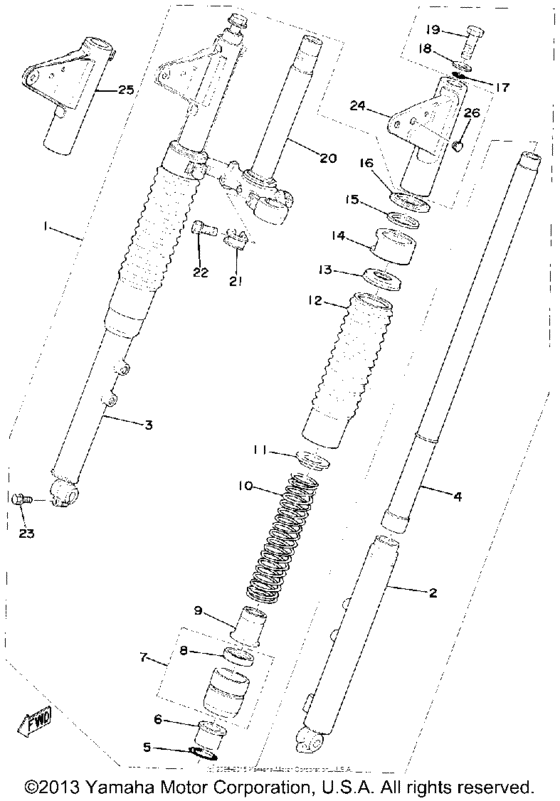

Front fork Diagram Yamaha RS100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RS100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
465-23101-40-00
Front Fork Assembly
|
465-23101-40-00 |
— | ||
|
2
|
2
326-23126-90-93
Tube, Outer 1
|
326-23126-90-93 |
— | ||
|
3
|
3
326-23136-90-93
Tube, Outer 2
|
326-23136-90-93 |
— | ||
|
4
|
4
241-23124-40-00
Tube, Inner 1
|
241-23124-40-00 |
— | ||
|
5
|
5
122-23147-00-00
O-Ring
|
122-23147-00-00 |
— | ||
|
6
|
6
357-23125-90-00
Metal, Slide 1
|
357-23125-90-00 |
— | ||
|
7
|
7
212-23150-41-00
Outer Nut
|
212-23150-41-00 |
— | ||
|
8
|
8
276-23145-51-00 Oil Seal (5R6)5R6 |
276-23145-51-00 |
from US $12.04 |
||
| replacement | |||||
|
8
|
8
93110-27010-00 Oil Seal5R6 |
93110-27010-00 |
from US $12.04 |
||
|
9
|
9
122-23143-00-00
Seat, Spring Lower
|
122-23143-00-00 |
— | ||
|
10
|
10
465-23141-40-00
Spring, Front Fork
|
465-23141-40-00 |
— | ||
|
11
|
11
124-23142-00-00
Seat, Spring Upper
|
124-23142-00-00 |
— | ||
|
12
|
12
183-23191-40-00
Boot, Front Fork
|
183-23191-40-00 |
— | ||
|
13
|
13
183-23193-40-00
Guide, Boot
|
183-23193-40-00 |
— | ||
|
14
|
14
183-23122-40-00
Cover, Outer 1
|
183-23122-40-00 |
— | ||
|
15
|
15
463-23163-00-00 Gasket |
463-23163-00-00 |
US $8.51 |
||
|
16
|
16
463-23116-00-00 Guide, Cover Lower |
463-23116-00-00 |
US $12.78 |
||
|
17
|
17
307-23114-00-00 Gasket |
307-23114-00-00 |
from US $5.81 |
||
|
18
|
18
276-23112-50-00
Washer, Cap
|
276-23112-50-00 |
— | ||
|
19
|
19
307-23111-00-00 Bolt, Cap |
307-23111-00-00 |
US $9.85 |
||
|
20
|
20
464-23340-01-33
Under Bracket
|
464-23340-01-33 |
— | ||
|
21
|
21
260-23318-40-00 Wire, Holder 1 |
260-23318-40-00 |
US $5.38 |
||
|
22
|
22
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
22
|
22
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
23
|
23
90119-08010-00
Bolt, With Washer
|
90119-08010-00 |
— | ||
| replacement | |||||
|
23
|
23
5X6-23181-L0-00
Bolt, Hexagon Socket Head
|
5X6-23181-L0-00 |
— | ||
|
24
|
24
465-23121-01-33
Cover, Upper 1
YAMAHA BLACK |
465-23121-01-33 |
— | ||
|
25
|
25
465-23131-01-33
Cover, Upper 2
YAMAHA BLACK |
465-23131-01-33 |
— | ||
|
26
|
26
903-38090-60-00
Plug, Spec''l Shape
|
903-38090-60-00 |
— | ||
