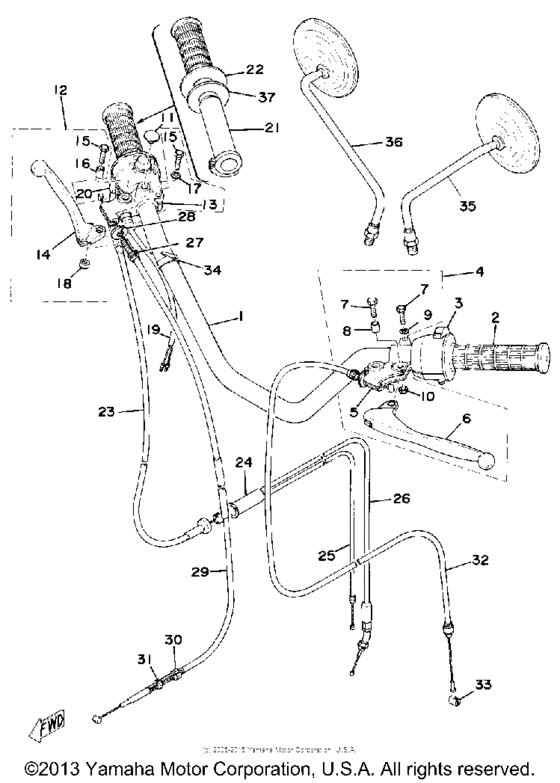

Handle - wire Diagram Yamaha RS100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RS100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
337-26111-00-00
Handlebar
|
337-26111-00-00 |
— | ||
|
2
|
2
341-26241-00-00
Grip Lh
LH |
341-26241-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
3
|
3
360-83973-02-00
Switch, Handle 3
|
360-83973-02-00 |
— | ||
|
4
|
4
360-82910-02-00
Lever Holder Assembly 1 (360-82
360-82 |
360-82910-02-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
360-82 |
999-99999-99-00 |
— | ||
|
5
|
5
341-82911-00-00 Holder, Lever 1 |
341-82911-00-00 |
from US $29.95 |
||
|
6
|
6
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $10.10 |
||
|
7
|
7
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
7
|
7
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
8
|
8
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
10
|
10
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
11
|
11
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
12
|
12
361-82920-93-00
Holder, Lever 2 (36182-92131-
36182-92131-00 |
361-82920-93-00 |
— | ||
|
13
|
13
361-82920-93-00
Holder, Lever 2 (36182-92131-
36182-92131- N/A |
361-82920-93-00 |
— | ||
|
14
|
14
233-83922-30-00 Lever RLever 2 |
233-83922-30-00 |
from US $14.37 |
||
|
15
|
15
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
15
|
15
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
16
|
16
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
18
|
18
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
19
|
19
395-83980-00-00 Front Stop Switch AsAS |
395-83980-00-00 |
from US $34.31 |
||
| replacement | |||||
|
19
|
19
395-83980-09-00 Front Stop Switch AssyAS |
395-83980-09-00 |
from US $28.79 |
||
|
20
|
20
465-83976-01-00
Switch, Handle 1
|
465-83976-01-00 |
— | ||
|
21
|
21
214-26243-00-00 Tube, Thrtl Guide |
214-26243-00-00 |
from US $16.50 |
||
|
22
|
22
235-26242-10-00
Grip Rh
RH |
235-26242-10-00 |
— | ||
| replacement | |||||
|
22
|
22
306-26242-10-00 Grip RhGrip,right RH |
306-26242-10-00 |
from US $30.46 |
||
|
23
|
23
465-26311-00-00
Cable, Throttle 1
|
465-26311-00-00 |
— | ||
|
24
|
24
214-26261-00-00 Connector, Cable |
214-26261-00-00 |
from US $9.21 |
||
|
25
|
25
336-26312-00-00
Cable, Throttle 2
|
336-26312-00-00 |
— | ||
|
26
|
26
336-26321-01-00 Cable, Pump |
336-26321-01-00 |
US $53.61 |
||
|
27
|
27
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
27
|
27
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
28
|
28
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
28
|
28
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
29
|
29
336-26341-10-00 Cable, Brake |
336-26341-10-00 |
US $55.68 |
||
|
30
|
30
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
31
|
31
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
32
|
32
463-26335-10-00 Cable, clutch |
463-26335-10-00 |
from US $19.87 |
||
|
33
|
33
164-26363-00-00 End, Cable |
164-26363-00-00 |
from US $3.54 |
||
|
34
|
34
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
35
|
35
341-26290-10-00
Mirror Assembly Lh
LH |
341-26290-10-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
36
|
36
341-26290-01-00
Back Mirror Rh (341-26290-01)
RH 341-26290-01 OPTIONAL PARTS |
341-26290-01-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
RH 341-26290-01 OPTIONAL PARTS |
999-99999-99-00 |
— | ||
|
37
|
37
90201-261L0-00 Washer, Plate (1V1-26249-00)1V1-26249-00 |
90201-261L0-00 |
from US $2.69 |
||
| replacement | |||||
|
37
|
37
90201-261L1-00 Washer, Plate (1V1-26249-00)1V1-26249-00 |
90201-261L1-00 |
from US $2.69 |
||
