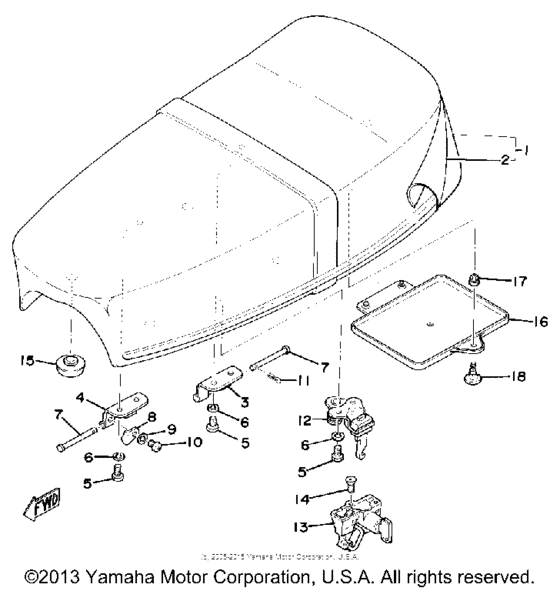

Seat Diagram Yamaha RS100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RS100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
463-W2472-02-00
Double Seat Assembly
|
463-W2472-02-00 |
— | ||
|
2
|
2
463-24731-01-00
Cover, Double Seat
|
463-24731-01-00 |
— | ||
|
3
|
3
371-24726-01-00 Hinge, Seat |
371-24726-01-00 |
from US $18 |
||
|
4
|
4
463-24726-00-00 Hinge, Seat |
463-24726-00-00 |
US $35.37 |
||
|
5
|
5
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
91701-05055-00 Pin |
91701-05055-00 |
from US $2.98 |
||
|
8
|
8
463-24756-00-00 Cover, Tail |
463-24756-00-00 |
US $9.85 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
10
|
10
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
11
|
11
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
12
|
12
371-24728-02-00
Bracket, Seat
|
371-24728-02-00 |
— | ||
|
13
|
13
584-24705-00-00
Seat Lock Assembly
|
584-24705-00-00 |
— | ||
|
14
|
14
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
15
|
15
1L9-24741-00-00 Pad, Seat |
1L9-24741-00-00 |
from US $8.36 |
||
|
16
|
16
2R6-28185-00-00
Lid
|
2R6-28185-00-00 |
— | ||
|
17
|
17
904-80060-07-00
Grommet (341-28187-00)
341-28187-00 |
904-80060-07-00 |
— | ||
|
18
|
18
341-28188-00-00
Plunger
|
341-28188-00-00 |
— | ||
