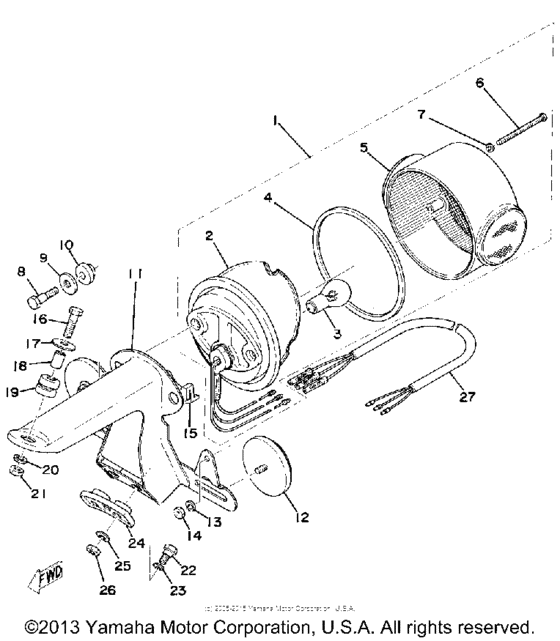

Tail lamp Diagram Yamaha RS100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RS100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
437-84510-62-00
Taillight Unit Assembly
|
437-84510-62-00 |
— | ||
|
2
|
2
444-84711-61-00
Base, Taillight
|
444-84711-61-00 |
— | ||
|
3
|
3
1M1-84514-60-00
Bulb (6V-25/5.3W)
6VP21/5W17904 |
1M1-84514-60-00 |
— | ||
| replacement | |||||
|
3
|
3
1M1-84514-60-XX
BOLT
6VP21/5W17904 |
1M1-84514-60-XX |
— | ||
|
4
|
4
275-84523-60-00
Gasket, Lens
|
275-84523-60-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
341-84721-60-00
Lens, Taillight
|
341-84721-60-00 |
— | ||
|
6
|
6
98580-04055-00 Screw, Lens Fitting |
98580-04055-00 |
from US $4.25 |
||
|
7
|
7
341-84722-60-00
Washer
|
341-84722-60-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
479-84526-00-00
Screw
|
479-84526-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
2H7-84754-00-00 Washer, Special |
2H7-84754-00-00 |
from US $3.40 |
||
|
10
|
10
275-84527-60-00
Damper
|
275-84527-60-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
479-84551-01-35
Bracket, Licence
|
479-84551-01-35 |
— | ||
|
12
|
12
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $12.46 |
||
|
13
|
13
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
15
|
15
437-84527-60-00
Damper
|
437-84527-60-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
16
|
16
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
17
|
17
90209-06095-00 Washer |
90209-06095-00 |
from US $1.84 |
||
| replacement | |||||
|
17
|
17
90209-06012-00 Washer |
90209-06012-00 |
from US $1.84 |
||
|
18
|
18
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
18
|
18
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
19
|
19
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
22
|
22
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
23
|
23
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
24
|
24
214-84553-01-00 Damper |
214-84553-01-00 |
from US $10.06 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
27
|
27
316-84717-70-00
Cord, Taillight
|
316-84717-70-00 |
— | ||
