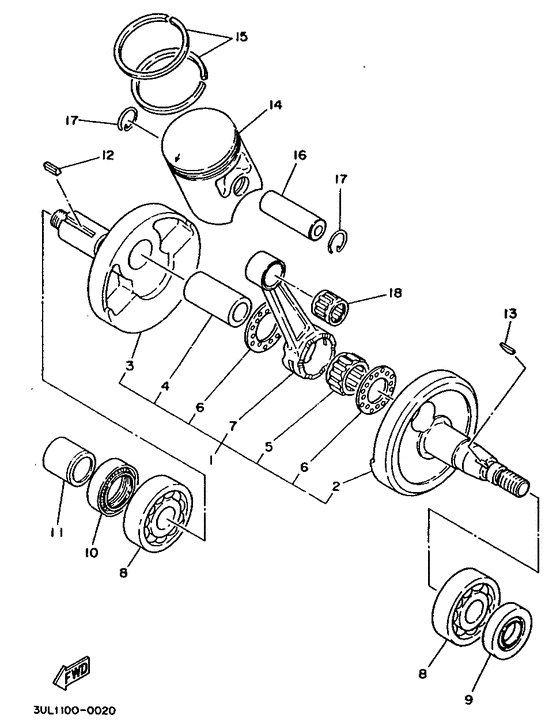

Crankshaft & Piston Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
558-11400-00-00
Crankshaft Assembly
|
558-11400-00-00 |
— | ||
|
02
|
02
558-11412-00-00 Crank 1 |
558-11412-00-00 |
from US $207.24 |
||
|
03
|
03
558-11422-00-00
Crank 2
|
558-11422-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
5E2-11681-00-00 Pin, Crank 1 |
5E2-11681-00-00 |
from US $34.94 |
||
|
05
|
05
93310-422E7-00 Bearing, Cyl. #10Bearing, cylindrical |
93310-422E7-00 |
from US $11.76 |
||
|
06
|
06
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $3.64 |
||
|
07
|
07
1M7-11651-00-00 Rod, Connecting |
1M7-11651-00-00 |
from US $129.56 |
||
|
08
|
08
93306-30421-00 Bearing |
93306-30421-00 |
from US $32.44 |
||
| replacement | |||||
|
08
|
08
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $26.21 |
||
|
09
|
09
93102-20231-00 Oil Seal |
93102-20231-00 |
from US $8.22 |
||
| replacement | |||||
|
09
|
09
931-02204-47-00 Oil Seal |
931-02204-47-00 |
from US $4.30 |
||
|
10
|
10
93103-28011-00 Oil Seal, Sw-Type (93103-28100) |
93103-28011-00 |
from US $5.96 |
||
|
11
|
11
90387-20175-00 Collar |
90387-20175-00 |
from US $8.78 |
||
|
12
|
12
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
|
13
|
13
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
|
14
|
14
3UL-11631-00-97 Piston (Std) |
3UL-11631-00-97 |
US $98.53 |
||
|
14
|
14
3UL-11635-00-00 Piston (0.25Mm O/s)Piston (0.25mm o/s) Ap |
3UL-11635-00-00 |
US $68.63 |
||
|
14
|
14
3UL-11636-00-00 Piston (0.50Mm O/s)Piston (0.50mm o/s) Ap |
3UL-11636-00-00 |
US $80.68 |
||
|
14
|
14
3UL-11637-00-00 Piston (0.75Mm O/s)Piston (0.75mm o/s) Ap |
3UL-11637-00-00 |
US $145.60 |
||
|
14
|
14
3UL-11638-00-00 Piston (1.00Mm O/s)Piston (1.00mm o/s) Ap |
3UL-11638-00-00 |
US $102.28 |
||
|
14
|
14
3UL-11631-00-95 Piston (Std) |
3UL-11631-00-95 |
US $67.56 |
||
|
15
|
15
3A3-11610-00-00 Piston Ring Set |
3A3-11610-00-00 |
US $69.91 |
||
|
15
|
15
3A3-11610-10-00 Piston Ring SetAp |
3A3-11610-10-00 |
US $43.02 |
||
|
15
|
15
3A3-11610-20-00
Piston Ring Set
Ap |
3A3-11610-20-00 |
— | ||
|
15
|
15
3A3-11610-30-00
Piston Ring Set
Ap |
3A3-11610-30-00 |
— | ||
|
15
|
15
3A3-11610-40-00
Piston Ring Set
Ap |
3A3-11610-40-00 |
— | ||
|
16
|
16
131-11633-00-00 Pin, Piston |
131-11633-00-00 |
from US $15.58 |
||
|
17
|
17
93450-15023-00 Circlip |
93450-15023-00 |
from US $1.66 |
||
|
18
|
18
93310-21403-00 BearingUr tomson |
93310-21403-00 |
from US $7.51 |
||
|
18
|
18
93310-214F8-00 BearingUr koyo |
93310-214F8-00 |
from US $9.49 |
||
| replacement | |||||
|
18
|
18
93310-21403-00 BearingUr koyo |
93310-21403-00 |
from US $7.51 |
||
