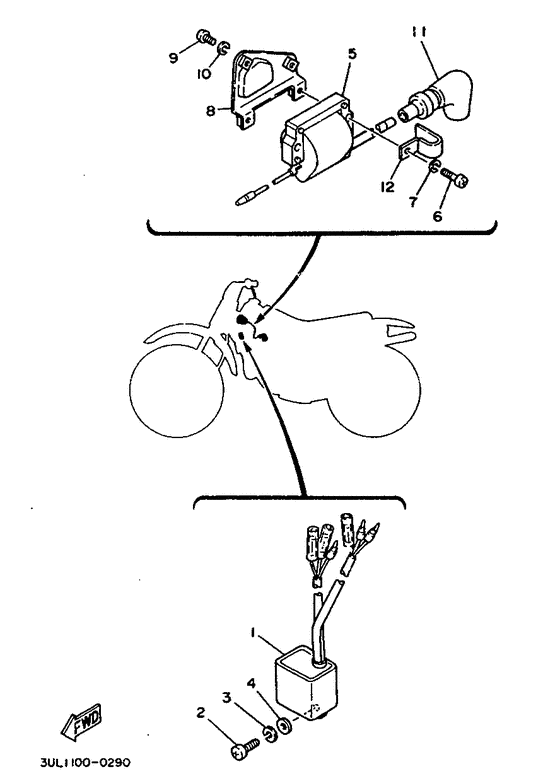

Electrical 1 Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3T0-85540-20-00 C.d.i. Unit Assembly |
3T0-85540-20-00 |
US $278.69 |
||
|
02
|
02
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
03
|
03
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
04
|
04
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
05
|
05
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
05
|
05
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
06
|
06
985-07060-25-00
Screw, Pan Head
|
985-07060-25-00 |
— | ||
| replacement | |||||
|
06
|
06
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
07
|
07
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
08
|
08
336-82316-01-00
Bracket, Ignition Coil
|
336-82316-01-00 |
— | ||
|
09
|
09
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
09
|
09
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
10
|
10
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
11
|
11
2TV-82370-00-00
Plug Cap Assembly
With noise suppressor |
2TV-82370-00-00 |
— | ||
| replacement | |||||
|
11
|
11
8DG-82370-00-00 Plug Cap AssyWith noise suppressor |
8DG-82370-00-00 |
from US $28.34 |
||
|
12
|
12
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
