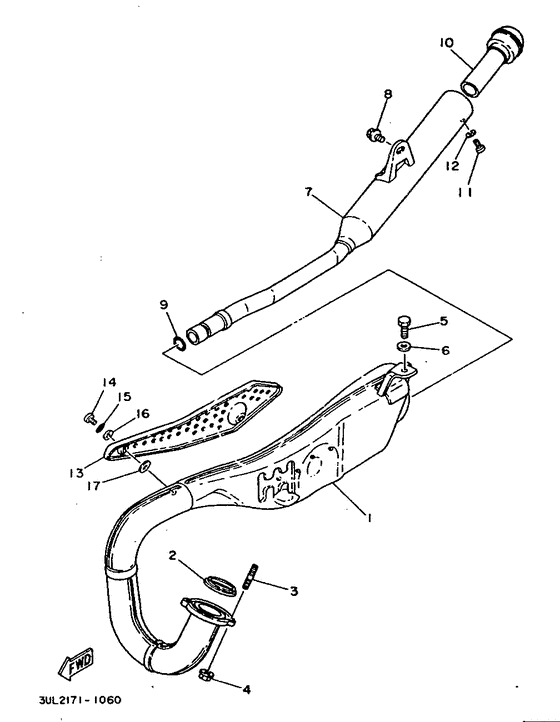

Exhaust Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UL-14610-01-00 Exhaust Pipe Assembly 1 |
3UL-14610-01-00 |
US $299.30 |
||
|
02
|
02
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.35 |
||
|
03
|
03
90116-06016-00 Bolt, Stud |
90116-06016-00 |
from US $3.40 |
||
|
04
|
04
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
04
|
04
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
05
|
05
97007-08016-00 Bolt |
97007-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
05
|
05
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
06
|
06
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.21 |
||
|
07
|
07
3UL-14753-00-00 Silencer, Exhaust |
3UL-14753-00-00 |
US $222.23 |
||
|
08
|
08
958-27080-12-00 Bolt, Flange |
958-27080-12-00 |
from US $1.07 |
||
| replacement | |||||
|
08
|
08
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
09
|
09
93210-16290-00 O-Ring |
93210-16290-00 |
from US $1.70 |
||
|
10
|
10
438-14752-00-00 Pipe, Outlet |
438-14752-00-00 |
US $58.92 |
||
|
11
|
11
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
|
12
|
12
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
13
|
13
3UL-14718-00-00 Protector, Muffler 1 |
3UL-14718-00-00 |
US $125.73 |
||
|
14
|
14
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
15
|
15
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.34 |
||
|
16
|
16
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
17
|
17
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
