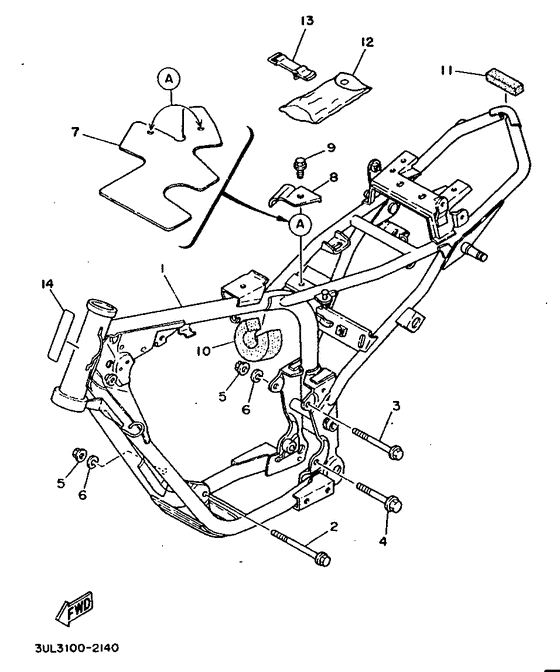

Frame Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UL-21110-00-33
Frame Comp
Yamaha black |
3UL-21110-00-33 |
— | ||
|
02
|
02
90105-08094-00 Bolt, Flange |
90105-08094-00 |
from US $3.38 |
||
|
03
|
03
90105-08095-00 Bolt, Washer Based |
90105-08095-00 |
from US $4.16 |
||
|
04
|
04
95817-10075-00 Bolt, Flange |
95817-10075-00 |
from US $4.53 |
||
|
05
|
05
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
05
|
05
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
06
|
06
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
07
|
07
3UL-2117F-00-00 Cover |
3UL-2117F-00-00 |
US $102.42 |
||
|
08
|
08
3UL-21329-00-00 Plate |
3UL-21329-00-00 |
US $11.63 |
||
|
09
|
09
95807-06016-00 Bolt, Flange |
95807-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
09
|
09
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
10
|
10
1YW-24183-00-00 Patch 1 |
1YW-24183-00-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
8V7-21961-00-00 Patch 1 |
8V7-21961-00-00 |
from US $2.13 |
||
|
11
|
11
1KT-21717-00-00 Damper 1 |
1KT-21717-00-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
83R-14425-00-00 Damper 1 |
83R-14425-00-00 |
from US $1.56 |
||
|
12
|
12
59V-28100-00-00
Tool Kit (24W-28100-00)
|
59V-28100-00-00 |
— | ||
|
13
|
13
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.76 |
||
|
14
|
14
3UL-2179X-00-00
Plate, Epa
For usa |
3UL-2179X-00-00 |
— | ||
