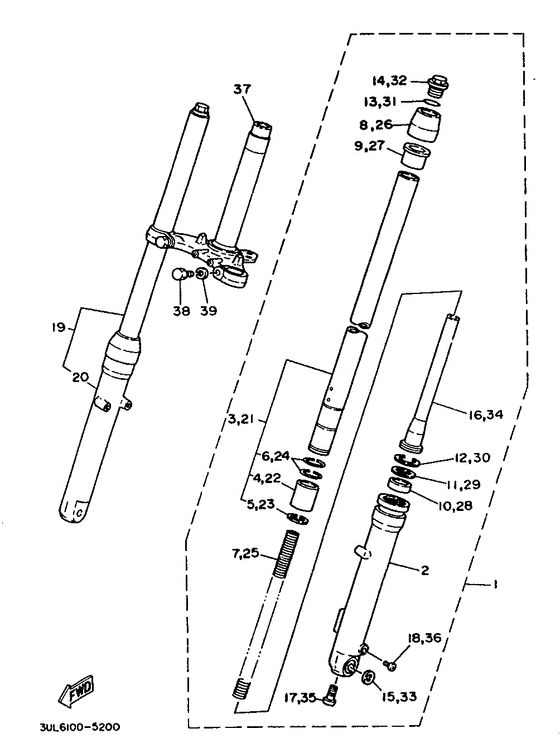

Front fork Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UL-23102-01-00
Front Fork Assembly (L.h)
|
3UL-23102-01-00 |
— | ||
| replacement | |||||
|
01
|
01
3UL-23102-02-00
Front Fork Assembly (L.h)
|
3UL-23102-02-00 |
— | ||
|
02
|
02
1T9-23126-00-35
Tube, Outer (Left)
Silver |
1T9-23126-00-35 |
— | ||
|
03
|
03
3UL-23124-01-00
Tube, Inner 1
|
3UL-23124-01-00 |
— | ||
|
04
|
04
462-23171-02-00
Piston, Front Fork
|
462-23171-02-00 |
— | ||
|
05
|
05
462-23183-02-00 Circlip |
462-23183-02-00 |
US $7.56 |
||
|
06
|
06
462-23157-02-00
Ring, Piston
|
462-23157-02-00 |
— | ||
|
07
|
07
3UL-23141-01-00
Spring, Front Fork
|
3UL-23141-01-00 |
— | ||
|
08
|
08
462-23144-02-00
Seal, Dust
|
462-23144-02-00 |
— | ||
|
09
|
09
462-23125-02-00
Metal, Slide 1
|
462-23125-02-00 |
— | ||
|
10
|
10
462-23145-02-00 Oil Seal (5R6) |
462-23145-02-00 |
from US $12.04 |
||
| replacement | |||||
|
10
|
10
93110-27010-00 Oil Seal |
93110-27010-00 |
from US $12.04 |
||
|
11
|
11
462-23146-02-00
Washer, Oil Seal
|
462-23146-02-00 |
— | ||
|
12
|
12
462-23156-02-00
Clip, Oil Seal
|
462-23156-02-00 |
— | ||
|
13
|
13
3R0-23147-00-00 O-Ring |
3R0-23147-00-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
14
|
14
3UL-23111-00-00 Bolt, Cap |
3UL-23111-00-00 |
US $32.54 |
||
|
15
|
15
462-23392-02-00 Washer, Special |
462-23392-02-00 |
US $5.83 |
||
|
16
|
16
462-23170-02-00
Cylinder Comp., Front Fork
|
462-23170-02-00 |
— | ||
|
17
|
17
451-23181-01-00 Bolt, Hexagon Socket HeadBolt, hexagon socket head |
451-23181-01-00 |
US $1.07 |
||
| replacement | |||||
|
17
|
17
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
18
|
18
451-23119-01-00
Plug, Drain
|
451-23119-01-00 |
— | ||
|
19
|
19
3UL-23103-01-00
Front Fork Assembly (R.h)
|
3UL-23103-01-00 |
— | ||
| replacement | |||||
|
19
|
19
3UL-23103-02-00
Front Fork Assembly (R.h)
|
3UL-23103-02-00 |
— | ||
|
20
|
20
1T9-23136-00-35
Tube, Outer (Right)
Silver |
1T9-23136-00-35 |
— | ||
|
21
|
21
3UL-23124-01-00
Tube, Inner 1
|
3UL-23124-01-00 |
— | ||
|
22
|
22
462-23171-02-00
Piston, Front Fork
|
462-23171-02-00 |
— | ||
|
23
|
23
462-23183-02-00 Circlip |
462-23183-02-00 |
US $7.56 |
||
|
24
|
24
462-23157-02-00
Ring, Piston
|
462-23157-02-00 |
— | ||
|
25
|
25
3UL-23141-01-00
Spring, Front Fork
|
3UL-23141-01-00 |
— | ||
|
26
|
26
462-23144-02-00
Seal, Dust
|
462-23144-02-00 |
— | ||
|
27
|
27
462-23125-02-00
Metal, Slide 1
|
462-23125-02-00 |
— | ||
|
28
|
28
462-23145-02-00 Oil Seal (5R6) |
462-23145-02-00 |
from US $12.04 |
||
| replacement | |||||
|
28
|
28
93110-27010-00 Oil Seal |
93110-27010-00 |
from US $12.04 |
||
|
29
|
29
462-23146-02-00
Washer, Oil Seal
|
462-23146-02-00 |
— | ||
|
30
|
30
462-23156-02-00
Clip, Oil Seal
|
462-23156-02-00 |
— | ||
|
31
|
31
3R0-23147-00-00 O-Ring |
3R0-23147-00-00 |
from US $1.70 |
||
| replacement | |||||
|
31
|
31
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
32
|
32
3UL-23111-00-00 Bolt, Cap |
3UL-23111-00-00 |
US $32.54 |
||
|
33
|
33
462-23392-02-00 Washer, Special |
462-23392-02-00 |
US $5.83 |
||
|
34
|
34
462-23170-02-00
Cylinder Comp., Front Fork
|
462-23170-02-00 |
— | ||
|
35
|
35
451-23181-01-00 Bolt, Hexagon Socket HeadBolt, hexagon socket head |
451-23181-01-00 |
US $1.07 |
||
| replacement | |||||
|
35
|
35
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
36
|
36
451-23119-01-00
Plug, Drain
|
451-23119-01-00 |
— | ||
|
37
|
37
1T9-23340-00-90 Under Bracket CompUnder bracket comp. Uni-chrome (black) |
1T9-23340-00-90 |
US $331.43 |
||
|
38
|
38
97013-10030-00 Bolt (8J7) |
97013-10030-00 |
from US $10.06 |
||
|
39
|
39
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
39
|
39
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
