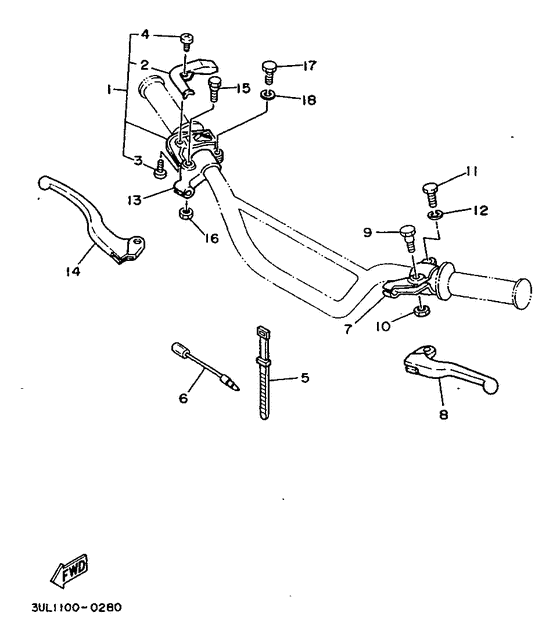

Handle switch & lever Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
47J-83976-01-00
Switch, Handle 1
|
47J-83976-01-00 |
— | ||
|
02
|
02
33G-83956-01-00
Cap 1
|
33G-83956-01-00 |
— | ||
|
03
|
03
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
03
|
03
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
04
|
04
98906-04008-00 Screw, Bind |
98906-04008-00 |
from US $1.56 |
||
| replacement | |||||
|
04
|
04
98907-04008-00 Screw, Binding |
98907-04008-00 |
from US $1.56 |
||
|
05
|
05
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
06
|
06
558-82116-00-00 Wire, Minus Lead |
558-82116-00-00 |
US $9.41 |
||
|
07
|
07
214-82911-01-00 Holder, Lever 1 |
214-82911-01-00 |
from US $41.72 |
||
|
08
|
08
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
08
|
08
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
09
|
09
90109-06798-00 Bolt |
90109-06798-00 |
from US $3.40 |
||
| replacement | |||||
|
09
|
09
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.26 |
||
|
10
|
10
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
11
|
11
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
11
|
11
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
12
|
12
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
13
|
13
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
14
|
14
23X-83922-00-00
Lever 2
|
23X-83922-00-00 |
— | ||
| replacement | |||||
|
14
|
14
23X-83922-01-00 Lever 2 |
23X-83922-01-00 |
from US $9.92 |
||
|
15
|
15
90109-06798-00 Bolt |
90109-06798-00 |
from US $3.40 |
||
| replacement | |||||
|
15
|
15
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.26 |
||
|
16
|
16
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
17
|
17
97007-06022-00 Bolt |
97007-06022-00 |
from US $1.34 |
||
|
18
|
18
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
