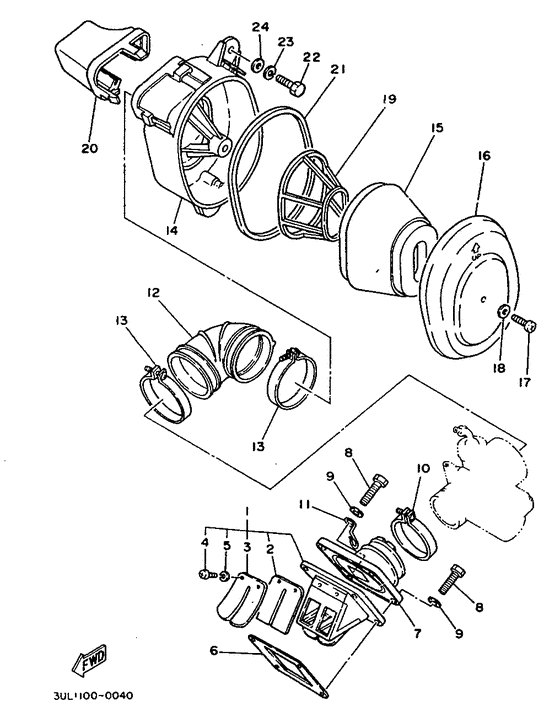

Intake Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
53V-13610-00-00 Reed Valve Assembly |
53V-13610-00-00 |
from US $201.06 |
||
|
02
|
02
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.66 |
||
|
03
|
03
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
03
|
03
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
04
|
04
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
04
|
04
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
05
|
05
929-07031-00-00
Washer, Spring
|
929-07031-00-00 |
— | ||
| replacement | |||||
|
05
|
05
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
06
|
06
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $2.32 |
||
|
07
|
07
560-13565-00-00 Joint, Carburetor |
560-13565-00-00 |
from US $15.87 |
||
|
08
|
08
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
08
|
08
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
09
|
09
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
10
|
10
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
10
|
10
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
11
|
11
90462-20029-00 New Genuine Part |
90462-20029-00 |
US $7.79 |
||
|
12
|
12
3A3-14453-01-00 Joint, Air Cleaner 1 |
3A3-14453-01-00 |
from US $8.35 |
||
| replacement | |||||
|
12
|
12
3A3-14453-02-00 Joint, Air Cleaner 1 |
3A3-14453-02-00 |
from US $12.89 |
||
|
13
|
13
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.65 |
||
|
14
|
14
1T9-14411-00-00
Case, Air Cleaner 1
|
1T9-14411-00-00 |
— | ||
|
15
|
15
1T9-14450-00-00
Element Assembly, Air Cleaner
|
1T9-14450-00-00 |
— | ||
| replacement | |||||
|
15
|
15
1T9-14450-01-00 Element Assembly, Air Cleaner |
1T9-14450-01-00 |
from US $15.41 |
||
|
16
|
16
1T9-14412-00-00
Cap, Cleaner Case 1
|
1T9-14412-00-00 |
— | ||
|
17
|
17
98507-06018-00 Screw,pan Head |
98507-06018-00 |
from US $1.42 |
||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
19
|
19
1T9-14458-00-00 Guide |
1T9-14458-00-00 |
US $17.75 |
||
|
20
|
20
1T9-14437-00-00 Duct |
1T9-14437-00-00 |
US $34.07 |
||
|
21
|
21
3V6-14416-00-00 Seal |
3V6-14416-00-00 |
from US $8.93 |
||
| replacement | |||||
|
21
|
21
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $3.32 |
||
|
22
|
22
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
22
|
22
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
23
|
23
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
24
|
24
90201-06765-00 Washer, Plate (1Hf) |
90201-06765-00 |
from US $1.28 |
||
| replacements | |||||
|
24
|
24
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
24
|
24
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
