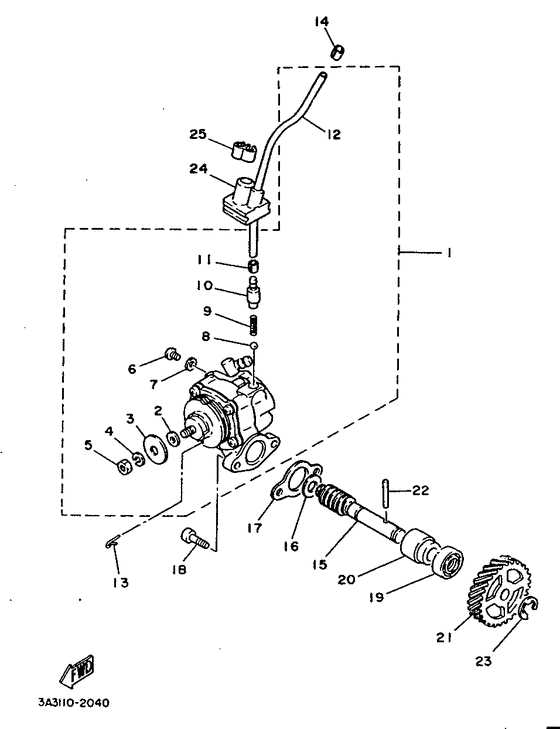

Oil pump Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UL-13101-00-00
Oil Pump Assembly
|
3UL-13101-00-00 |
— | ||
|
02
|
02
137-13137-00-03 Shim (T=0.3)Ur |
137-13137-00-03 |
from US $3.26 |
||
|
02
|
02
137-13137-00-05 Shim (T=0.5)Ur |
137-13137-00-05 |
from US $3.26 |
||
|
02
|
02
137-13137-00-10 Shim (T=1.0)Ur |
137-13137-00-10 |
from US $3.26 |
||
|
03
|
03
137-13138-01-00 Plate, Adjusting |
137-13138-01-00 |
from US $7.93 |
||
|
04
|
04
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
05
|
05
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
05
|
05
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
|
06
|
06
98907-04008-00 Screw, Binding |
98907-04008-00 |
from US $1.56 |
||
|
07
|
07
90430-04004-00 Gasket |
90430-04004-00 |
from US $1.28 |
||
|
08
|
08
93505-32002-00 Ball |
93505-32002-00 |
from US $1.84 |
||
|
09
|
09
90501-02217-00 Spring, Compression |
90501-02217-00 |
from US $2.55 |
||
|
10
|
10
402-13552-00-00 Nozzle |
402-13552-00-00 |
from US $9.07 |
||
|
11
|
11
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
12
|
12
90445-05278-00 Hose (L200) |
90445-05278-00 |
from US $2.98 |
||
| replacements | |||||
|
12
|
12
904-4505N-13-00 Hose (L200) |
904-4505N-13-00 |
from US $1.34 |
||
|
12
|
12
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $4.34 |
||
|
13
|
13
367-13146-01-00 Cover,adjust Pulley |
367-13146-01-00 |
from US $3.40 |
||
|
14
|
14
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
15
|
15
275-13175-01-00 Shaft, Worm |
275-13175-01-00 |
from US $17.35 |
||
| replacement | |||||
|
15
|
15
275-13175-02-00 Shaft, Worm |
275-13175-02-00 |
US $26.44 |
||
|
16
|
16
90201-08624-00 Washer, Plate |
90201-08624-00 |
from US $1.70 |
||
|
17
|
17
3MT-13116-00-00
Gasket, Pump Case
|
3MT-13116-00-00 |
— | ||
| replacement | |||||
|
17
|
17
126-13116-01-00 Gasket, Pump Case |
126-13116-01-00 |
from US $1.70 |
||
|
18
|
18
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
19
|
19
93101-10002-00 Oil Seal |
93101-10002-00 |
from US $2.32 |
||
|
20
|
20
1E7-13176-00-00
Metal, Worm Shaft Outer
|
1E7-13176-00-00 |
— | ||
| replacement | |||||
|
20
|
20
137-13176-00-00 Metal, Worm Shaft Outer |
137-13176-00-00 |
from US $9.59 |
||
|
21
|
21
248-13178-00-00 Gear, Pump Drive |
248-13178-00-00 |
from US $28.04 |
||
|
22
|
22
93603-22028-00 Pin, Dowel |
93603-22028-00 |
from US $1.66 |
||
|
23
|
23
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
24
|
24
525-13174-00-00 Holder, Oil Pipe |
525-13174-00-00 |
from US $7.93 |
||
| replacement | |||||
|
24
|
24
525-13174-01-00 |
525-13174-01-00 |
US $9.13 |
||
|
25
|
25
90468-15020-00 Clip |
90468-15020-00 |
from US $1.21 |
||
