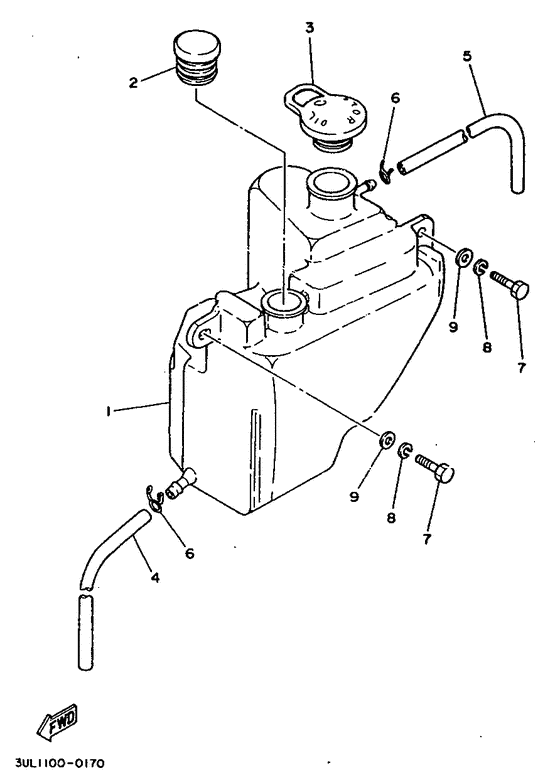

Oil tank Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1T9-21751-00-00
Tank, Oil
|
1T9-21751-00-00 |
— | ||
|
02
|
02
3M2-21771-00-00
Body, Cap
|
3M2-21771-00-00 |
— | ||
|
03
|
03
1T9-21771-00-00 Body, Cap |
1T9-21771-00-00 |
from US $9.94 |
||
| replacement | |||||
|
03
|
03
1T9-21771-01-00 BODY CAP |
1T9-21771-01-00 |
from US $10.66 |
||
|
04
|
04
90445-09252-00 Hose (L420) |
90445-09252-00 |
from US $6.52 |
||
| replacements | |||||
|
04
|
04
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
04
|
04
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
05
|
05
90445-09226-00 Hose (L420) |
90445-09226-00 |
from US $6.52 |
||
| replacements | |||||
|
05
|
05
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
05
|
05
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
06
|
06
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
07
|
07
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
07
|
07
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
08
|
08
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
09
|
09
90201-06765-00 Washer, Plate (1Hf) |
90201-06765-00 |
from US $1.28 |
||
| replacements | |||||
|
09
|
09
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
09
|
09
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
