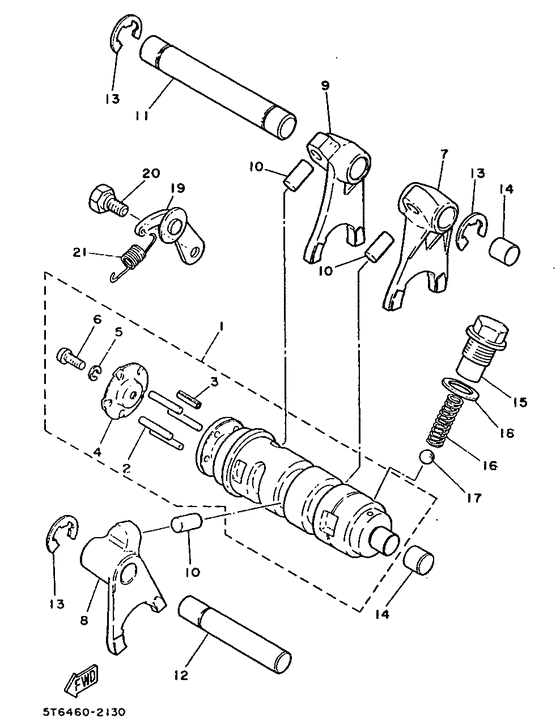

Shift Cam & Fork Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
401-18540-00-00 Shift Cam Assembly |
401-18540-00-00 |
from US $164.41 |
||
|
02
|
02
93604-22050-00 Pin, Dowel |
93604-22050-00 |
from US $1.84 |
||
|
03
|
03
91609-40016-00 Pin, Spring |
91609-40016-00 |
from US $1.84 |
||
| replacement | |||||
|
03
|
03
91690-40016-00 Pin, Spring |
91690-40016-00 |
from US $1.84 |
||
|
04
|
04
164-18561-00-00 Plate, Side 1 |
164-18561-00-00 |
from US $3.26 |
||
|
05
|
05
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
06
|
06
985-07050-12-00
Screw, Pan Head
|
985-07050-12-00 |
— | ||
| replacement | |||||
|
06
|
06
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
07
|
07
463-18511-00-00 Fork, Shift 1 |
463-18511-00-00 |
from US $42.44 |
||
|
08
|
08
248-18512-01-00 Fork, Shift 2 |
248-18512-01-00 |
from US $55.89 |
||
| replacement | |||||
|
08
|
08
463-18512-00-00 Fork, Shift 2 |
463-18512-00-00 |
from US $42.32 |
||
|
09
|
09
463-18513-00-00 Fork, Shift 3 |
463-18513-00-00 |
from US $42.30 |
||
|
10
|
10
90250-08017-00 Pin 2781855200 |
90250-08017-00 |
from US $1.70 |
||
|
11
|
11
214-18531-00-00 Bar, Shift Fork Guide 1 |
214-18531-00-00 |
US $18.42 |
||
|
12
|
12
248-18531-00-00 Bar, Shif Frk Gde 1 |
248-18531-00-00 |
from US $10.17 |
||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
93430-10017-00 Circlip |
93430-10017-00 |
from US $1.35 |
||
| replacement | |||||
|
13
|
13
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
14
|
14
214-15385-00-00 Plug, Blind |
214-15385-00-00 |
from US $9.07 |
||
|
15
|
15
90109-14385-00 Bolt |
90109-14385-00 |
from US $9.63 |
||
|
16
|
16
90501-12750-00 Spring, Compression |
90501-12750-00 |
US $1.58 |
||
|
17
|
17
93505-16006-00 Ball |
93505-16006-00 |
from US $1.70 |
||
|
18
|
18
4EG-15353-00-00 Gasket, Drain |
4EG-15353-00-00 |
from US $5.95 |
||
| replacement | |||||
|
18
|
18
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
19
|
19
132-18140-01-00 Stopper Lever Assembly |
132-18140-01-00 |
from US $14.17 |
||
|
20
|
20
90109-063F6-00 Bolt |
90109-063F6-00 |
US $2.13 |
||
| replacement | |||||
|
20
|
20
901-09062-39-00 Bolt |
901-09062-39-00 |
from US $1.47 |
||
|
21
|
21
90506-09112-00 Spring, Tension |
90506-09112-00 |
from US $2.55 |
||
