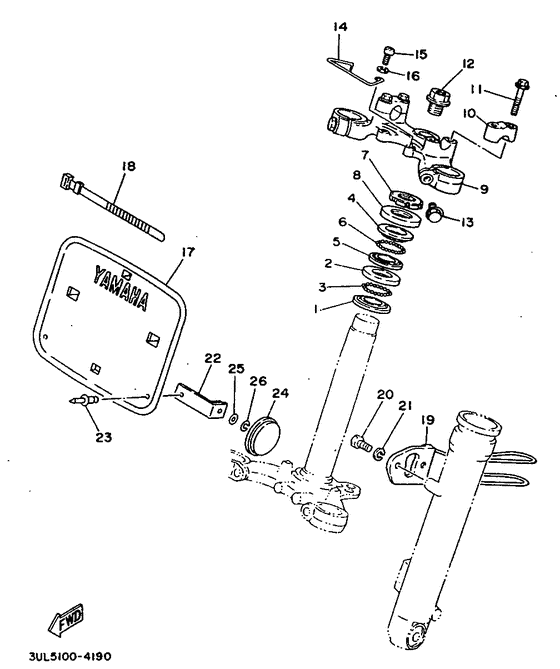

Steering Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
01
|
01
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
02
|
02
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
02
|
02
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
03
|
03
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
03
|
03
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
04
|
04
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $8.78 |
||
| replacement | |||||
|
04
|
04
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $6.30 |
||
|
05
|
05
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $7.93 |
||
| replacement | |||||
|
05
|
05
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $7.93 |
||
|
06
|
06
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
06
|
06
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
07
|
07
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
07
|
07
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
07
|
07
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
08
|
08
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
09
|
09
354-23435-00-T9
Crown, Handle
Competition silver |
354-23435-00-T9 |
— | ||
| replacement | |||||
|
09
|
09
354-23435-00-35
Crown, Handle
Competition silver |
354-23435-00-35 |
— | ||
|
10
|
10
1E6-23441-10-35 Holder, Handle UpperSilver |
1E6-23441-10-35 |
from US $17.85 |
||
|
11
|
11
95824-08035-00 Bolt, Flange |
95824-08035-00 |
from US $2.69 |
||
| replacement | |||||
|
11
|
11
95814-08035-00 Bolt, Flange(4Fm) |
95814-08035-00 |
from US $2.69 |
||
|
12
|
12
90105-14136-00 Bolt, Flange |
90105-14136-00 |
from US $2.77 |
||
| replacements | |||||
|
12
|
12
901-05142-20-00 Bolt, Flange |
901-05142-20-00 |
from US $3.68 |
||
|
12
|
12
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
13
|
13
95827-08030-00 Bolt, Flange |
95827-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
|
14
|
14
3UL-2331E-00-00
Guide, Cable
|
3UL-2331E-00-00 |
— | ||
|
15
|
15
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
16
|
16
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
3UL-23485-40-00
Plate, Number
Ur for usa, oceania |
3UL-23485-40-00 |
— | ||
|
17
|
17
3UL-23485-50-00
Plate, Number
Ur for canada |
3UL-23485-50-00 |
— | ||
|
18
|
18
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
19
|
19
1T9-23318-00-00
Holder, Cable 1
|
1T9-23318-00-00 |
— | ||
|
20
|
20
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
20
|
20
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
21
|
21
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
22
|
22
3UL-23486-00-00
Stay, Plate
For canada |
3UL-23486-00-00 |
— | ||
|
23
|
23
902-67400-80-00
Rivet, Blind (5H0)
For canada |
902-67400-80-00 |
— | ||
|
24
|
24
2EK-85111-00-00 Reflector, Front 1For canada |
2EK-85111-00-00 |
from US $6.30 |
||
|
25
|
25
92907-05200-00 WasherFor canada |
92907-05200-00 |
from US $1.56 |
||
|
26
|
26
92907-05100-00 Washer, SpringFor canada |
92907-05100-00 |
from US $1.56 |
||
