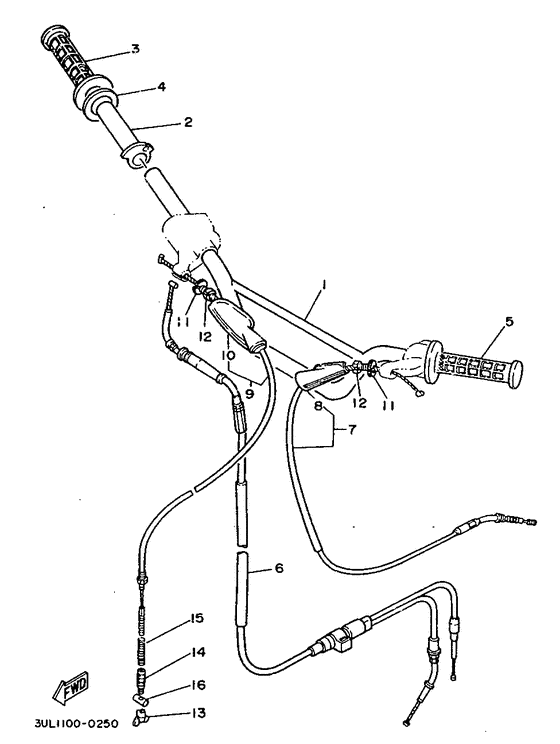

Steering handle & cable Diagram Yamaha RT100
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL6
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
17W-26111-20-00 HandlebarSilver |
17W-26111-20-00 |
from US $88.09 |
||
| replacement | |||||
|
01
|
01
3UN-26111-00-00 HandlebarSilver |
3UN-26111-00-00 |
US $107.35 |
||
|
02
|
02
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
03
|
03
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $14.31 |
||
|
04
|
04
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
05
|
05
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $14.31 |
||
|
06
|
06
3UL-26301-00-00 Throttle Cable Assembly |
3UL-26301-00-00 |
from US $75.17 |
||
| replacements | |||||
|
06
|
06
3UL-26301-10-00 Throttle Cable Assembly |
3UL-26301-10-00 |
from US $75.17 |
||
|
06
|
06
3UL-26301-11-00 |
3UL-26301-11-00 |
US $61.97 |
||
|
07
|
07
3M1-26335-00-00 Cable, clutch |
3M1-26335-00-00 |
US $44.91 |
||
| replacement | |||||
|
07
|
07
3M1-26335-10-00 Cable, clutch |
3M1-26335-10-00 |
US $56.47 |
||
|
08
|
08
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
08
|
08
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
09
|
09
3UL-26341-00-00 Cable, Brake |
3UL-26341-00-00 |
US $31.70 |
||
| replacement | |||||
|
09
|
09
3UL-26341-10-00 Cable, Brake |
3UL-26341-10-00 |
US $31.70 |
||
|
10
|
10
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
11
|
11
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
11
|
11
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
12
|
12
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
12
|
12
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
13
|
13
90175-06013-00 Nut, Wing |
90175-06013-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
14
|
14
3M7-26342-00-00 Boot, Cable |
3M7-26342-00-00 |
US $6.31 |
||
|
15
|
15
90501-09052-00 Spring, Compression |
90501-09052-00 |
from US $2.35 |
||
|
16
|
16
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
