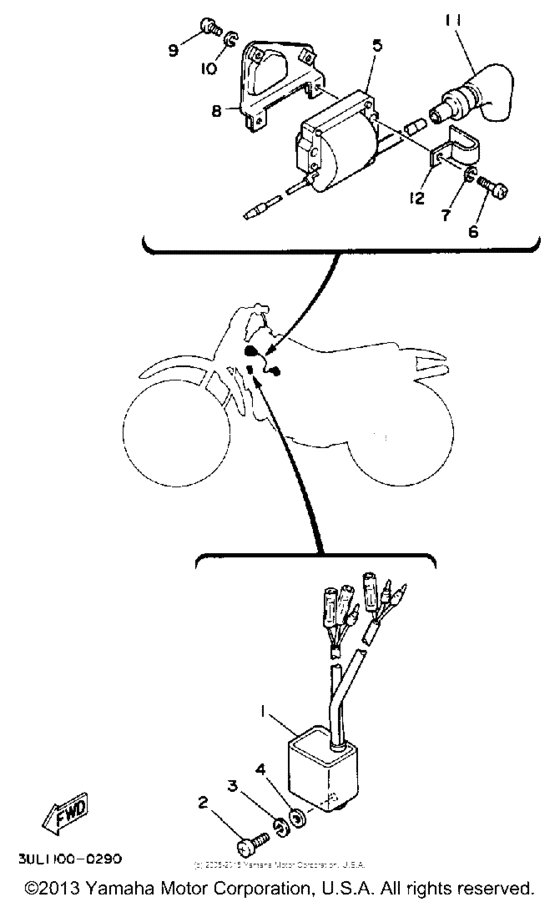

Electrical (1) Diagram Yamaha RT100
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3T0-85540-20-00 C.d.i. Unit Assembly |
3T0-85540-20-00 |
US $278.69 |
||
|
2
|
2
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
2
|
2
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
4
|
4
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
4
|
4
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
5
|
5
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
5
|
5
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
6
|
6
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
336-82316-01-00
Bracket, Ignition Coil
|
336-82316-01-00 |
— | ||
|
9
|
9
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
81E-82370-20-00 Plug Cap Assembly |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
11
|
11
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
12
|
12
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
