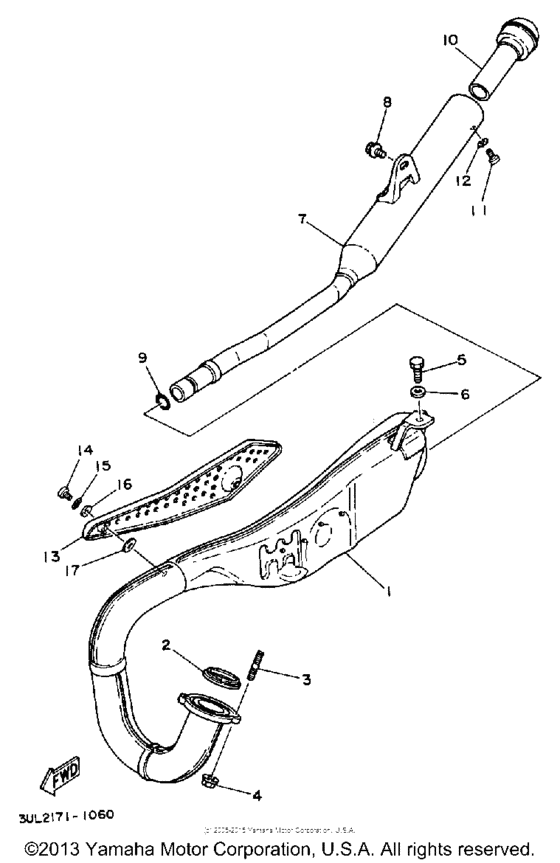

Exhaust Diagram Yamaha RT100
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3UL-14610-01-00 Exhaust Pipe Assembly 1 |
3UL-14610-01-00 |
US $299.30 |
||
|
2
|
2
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.35 |
||
|
3
|
3
90116-06016-00 Bolt, Stud |
90116-06016-00 |
from US $3.40 |
||
|
4
|
4
956-01062-00-00
Nut, U-Flange
|
956-01062-00-00 |
— | ||
| replacement | |||||
|
4
|
4
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
5
|
5
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
5
|
5
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
6
|
6
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
7
|
7
3UL-14753-00-00 Silencer, Exhaust |
3UL-14753-00-00 |
US $222.23 |
||
|
8
|
8
95816-08012-00 Bolt, Flange |
95816-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
9
|
9
93210-16290-00 O-Ring |
93210-16290-00 |
from US $1.70 |
||
|
10
|
10
438-14752-00-00 Pipe, Outlet |
438-14752-00-00 |
US $58.92 |
||
|
11
|
11
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
3UL-14718-00-00 Protector, Muffler 1 |
3UL-14718-00-00 |
US $125.73 |
||
|
14
|
14
989-06060-10-00
Screw, Bind
|
989-06060-10-00 |
— | ||
| replacement | |||||
|
14
|
14
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
15
|
15
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.34 |
||
|
16
|
16
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
17
|
17
3UL-14766-00-00 Washer, Protector |
3UL-14766-00-00 |
from US $3.97 |
||
| replacement | |||||
|
17
|
17
3HK-14766-02-00 Washer, Protector |
3HK-14766-02-00 |
from US $2.79 |
||
