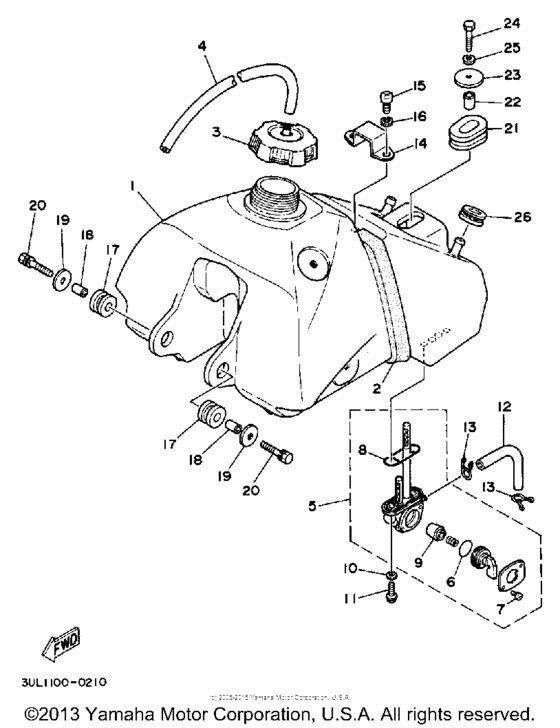

Fuel tank Diagram Yamaha RT100
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3UL-24110-00-00
Fuel Tank Comp
|
3UL-24110-00-00 |
— | ||
|
2
|
2
3UL-24181-00-00
Damper, Locating 1
|
3UL-24181-00-00 |
— | ||
|
3
|
3
2FJ-24610-00-00
Cap Assy
|
2FJ-24610-00-00 |
— | ||
| replacements | |||||
|
3
|
3
2FJ-24610-10-00 Cap Assy |
2FJ-24610-10-00 |
from US $71.57 |
||
|
3
|
3
2FJ-24610-20-00 Cap Assy |
2FJ-24610-20-00 |
from US $71.57 |
||
|
4
|
4
90445-09226-00 Hose (L420) |
90445-09226-00 |
from US $6.52 |
||
| replacements | |||||
|
4
|
4
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
4
|
4
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
5
|
5
36R-24500-01-00 Fuel Cock Assembly 1 |
36R-24500-01-00 |
from US $76.82 |
||
|
6
|
6
3AJ-24534-00-00
Seal, Cock
|
3AJ-24534-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.66 |
||
|
7
|
7
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
8
|
8
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
9
|
9
3AJ-24523-00-00
Valve Packing
|
3AJ-24523-00-00 |
— | ||
| replacement | |||||
|
9
|
9
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $6.80 |
||
|
10
|
10
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
11
|
11
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
12
|
12
90445-09065-00 Hose (L420) |
90445-09065-00 |
from US $6.52 |
||
| replacements | |||||
|
12
|
12
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
12
|
12
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
13
|
13
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
14
|
14
3UL-2412F-00-00 Bracket, Seat |
3UL-2412F-00-00 |
US $13.68 |
||
|
15
|
15
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
90480-18290-00 Grommet |
90480-18290-00 |
from US $1.70 |
||
|
18
|
18
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
19
|
19
90201-06072-00 Washer, Plate |
90201-06072-00 |
from US $1.28 |
||
|
20
|
20
90119-06073-00 Bolt, With Washer |
90119-06073-00 |
from US $1.84 |
||
|
21
|
21
90480-01400-00 Grommet |
90480-01400-00 |
from US $4.11 |
||
|
22
|
22
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
23
|
23
90201-060L5-00 Washer, Plate |
90201-060L5-00 |
from US $1.28 |
||
| replacement | |||||
|
23
|
23
90201-06090-00 Washer, Plate |
90201-06090-00 |
from US $1.70 |
||
|
24
|
24
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
24
|
24
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
24
|
24
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
26
|
26
90480-01531-00 Grommet |
90480-01531-00 |
from US $5.14 |
||
