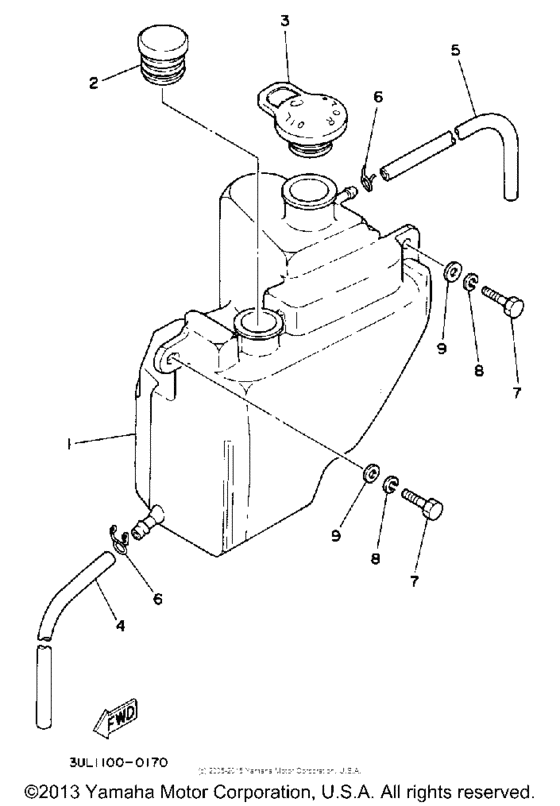

Oil tank Diagram Yamaha RT100
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T9-21751-00-00
Tank, Oil
|
1T9-21751-00-00 |
— | ||
|
2
|
2
3M2-21771-00-00
Body, Cap
|
3M2-21771-00-00 |
— | ||
|
3
|
3
1T9-21771-00-00 Body, Cap |
1T9-21771-00-00 |
from US $9.94 |
||
| replacement | |||||
|
3
|
3
1T9-21771-01-00 BODY CAP |
1T9-21771-01-00 |
from US $10.66 |
||
|
4
|
4
90445-09252-00 Hose (L420) |
90445-09252-00 |
from US $6.52 |
||
| replacements | |||||
|
4
|
4
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
4
|
4
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
5
|
5
90445-09226-00 Hose (L420) |
90445-09226-00 |
from US $6.52 |
||
| replacements | |||||
|
5
|
5
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
5
|
5
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
6
|
6
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
7
|
7
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
7
|
7
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
9
|
9
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
