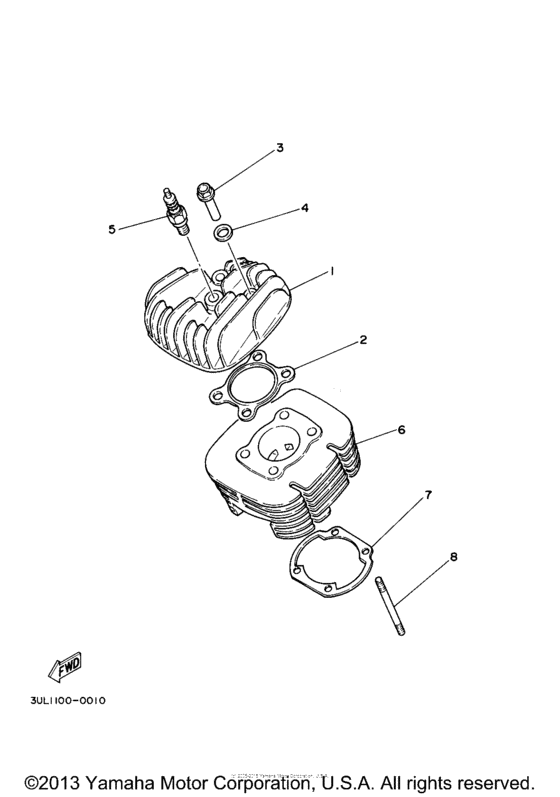

Cylinder head Diagram Yamaha RT100
- Year
- 2000
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T9-11111-00-00 Head, Cylinder 1 |
1T9-11111-00-00 |
US $168.68 |
||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
304-11181-70-00 Gasket, Cylinder Head 1 |
304-11181-70-00 |
from US $14.45 |
||
|
3
|
3
901-79083-03-00 Nut |
901-79083-03-00 |
from US $7.65 |
||
|
4
|
4
90201-12362-00 Washer, Plate |
90201-12362-00 |
from US $1.70 |
||
|
5
|
5
NBK-BR7ES-00-00
Plug, Spark (Ngk Br7Es)
|
NBK-BR7ES-00-00 |
— | ||
|
6
|
6
3A3-11311-01-00
Cylinder 1
|
3A3-11311-01-00 |
— | ||
|
7
|
7
3UL-11351-00-00 Gasket, Cylinder |
3UL-11351-00-00 |
from US $4.96 |
||
|
8
|
8
90116-08065-00 Bolt Stud 276113610000 |
90116-08065-00 |
from US $7.51 |
||
