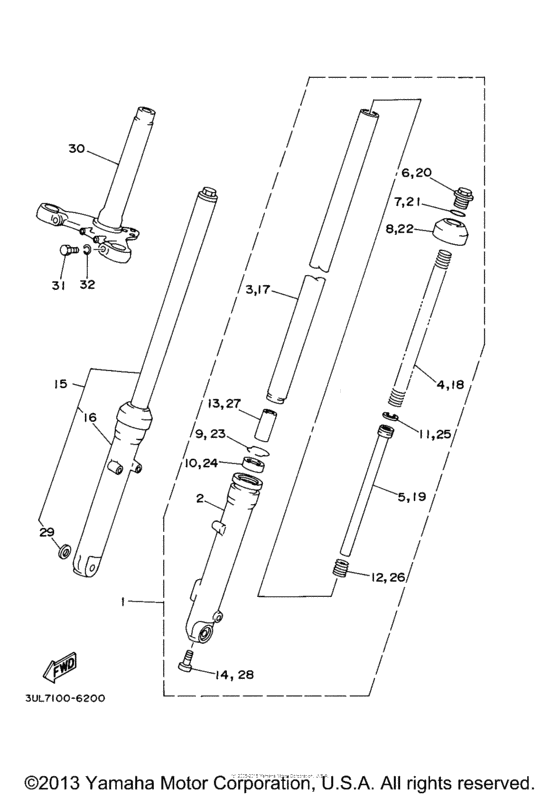

Front fork Diagram Yamaha RT100
- Year
- 2000
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3UL-23102-02-00
Front Fork Assembly (L.h)
|
3UL-23102-02-00 |
— | ||
|
2
|
2
3UL-23126-02-00
Tube, Outer (Left)
|
3UL-23126-02-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
3UL-23124-02-00 Tube, Inner 1 |
3UL-23124-02-00 |
US $184.45 |
||
|
4
|
4
3UL-23141-02-00 Spring, Front Fork |
3UL-23141-02-00 |
US $21.65 |
||
|
5
|
5
3UL-23171-02-00 Piston, Front Fork |
3UL-23171-02-00 |
US $38.57 |
||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
3UL-23111-00-00 Bolt, Cap |
3UL-23111-00-00 |
US $32.54 |
||
|
7
|
7
3R0-23147-00-00 O-Ring |
3R0-23147-00-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
8
|
8
2J5-23144-00-00
Seal, Dust
|
2J5-23144-00-00 |
— | ||
| replacement | |||||
|
8
|
8
462-23144-02-00
Seal, Dust
|
462-23144-02-00 |
— | ||
|
9
|
9
2J5-23156-00-00
Ring, Snap
|
2J5-23156-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
462-23145-02-00 Oil Seal (5R6)5R6 |
462-23145-02-00 |
from US $12.04 |
||
| replacement | |||||
|
10
|
10
93110-27010-00 Oil Seal5R6 |
93110-27010-00 |
from US $12.04 |
||
|
11
|
11
2J5-23157-00-00 Ring, Piston |
2J5-23157-00-00 |
from US $9.21 |
||
|
12
|
12
2J5-23151-00-00 Spring, Rebound |
2J5-23151-00-00 |
from US $5.10 |
||
|
13
|
13
3UL-23116-02-00 Seat 2 |
3UL-23116-02-00 |
US $15.41 |
||
|
14
|
14
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
15
|
15
3UL-23103-02-00
Front Fork Assembly (R.h)
|
3UL-23103-02-00 |
— | ||
|
16
|
16
3UL-23136-02-00 Tube, Outer (Right) |
3UL-23136-02-00 |
US $337.70 |
||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
3UL-23124-02-00 Tube, Inner 1 |
3UL-23124-02-00 |
US $184.45 |
||
|
18
|
18
3UL-23141-02-00 Spring, Front Fork |
3UL-23141-02-00 |
US $21.65 |
||
|
19
|
19
3UL-23171-02-00 Piston, Front Fork |
3UL-23171-02-00 |
US $38.57 |
||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
3UL-23111-00-00 Bolt, Cap |
3UL-23111-00-00 |
US $32.54 |
||
|
21
|
21
3R0-23147-00-00 O-Ring |
3R0-23147-00-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
22
|
22
2J5-23144-00-00
Seal, Dust
|
2J5-23144-00-00 |
— | ||
| replacement | |||||
|
22
|
22
462-23144-02-00
Seal, Dust
|
462-23144-02-00 |
— | ||
|
23
|
23
2J5-23156-00-00
Ring, Snap
|
2J5-23156-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
462-23145-02-00 Oil Seal (5R6)5R6 |
462-23145-02-00 |
from US $12.04 |
||
| replacement | |||||
|
24
|
24
93110-27010-00 Oil Seal5R6 |
93110-27010-00 |
from US $12.04 |
||
|
25
|
25
2J5-23157-00-00 Ring, Piston |
2J5-23157-00-00 |
from US $9.21 |
||
|
26
|
26
2J5-23151-00-00 Spring, Rebound |
2J5-23151-00-00 |
from US $5.10 |
||
|
27
|
27
3UL-23116-02-00 Seat 2 |
3UL-23116-02-00 |
US $15.41 |
||
|
28
|
28
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
29
|
29
462-23392-02-00 Washer, Special |
462-23392-02-00 |
US $5.83 |
||
|
30
|
30
1T9-23340-00-90 Under Bracket CompUnder bracket comp. ZK |
1T9-23340-00-90 |
US $331.43 |
||
|
31
|
31
97321-10030-00 Bolt (8J7) (97303-10030-00)8J7 97303-10030 |
97321-10030-00 |
from US $8.32 |
||
| replacement | |||||
|
31
|
31
97013-10030-00 Bolt (8J7)8J7 97303-10030 |
97013-10030-00 |
from US $10.06 |
||
|
32
|
32
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
32
|
32
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
