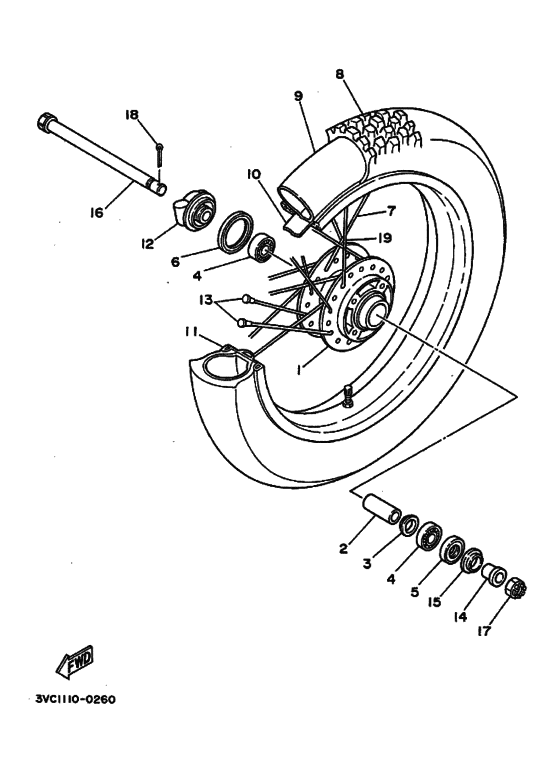

Front wheel Diagram Yamaha RT180
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BN1
- Sales region
- Europe (010)
- Engine Capacity
- 180
- Color Variant
- A
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TW-F5111-00-98
Hub, Front (3Vc-F5111-00-Ac)
LOW GLOSS BLACK |
2TW-F5111-00-98 |
— | ||
| replacement | |||||
|
1
|
1
2TW-F5111-10-WN
Front Hub
LOW GLOSS BLACK |
2TW-F5111-10-WN |
— | ||
|
2
|
2
3V9-F5117-00-00
Spacer, Bearing
|
3V9-F5117-00-00 |
— | ||
|
3
|
3
504-29531-00-00
Flange, Spacer
|
504-29531-00-00 |
— | ||
|
4
|
4
933-06202-05-09 Bearing (B6202) |
933-06202-05-09 |
US $34.15 |
||
| replacement | |||||
|
4
|
4
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.22 |
||
|
5
|
5
931-06220-16-09 Oil Seal |
931-06220-16-09 |
US $7.15 |
||
| replacement | |||||
|
5
|
5
93106-22016-00 Oil Seal |
93106-22016-00 |
from US $7.08 |
||
|
6
|
6
931-05450-17-09 Oil Seal |
931-05450-17-09 |
US $9.32 |
||
| replacement | |||||
|
6
|
6
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $11.05 |
||
|
7
|
7
2TW-F5196-00-00
Spoke, Inner 1
|
2TW-F5196-00-00 |
— | ||
|
8
|
8
94108-215H9-00
Tire
80/100-21-4PR; BRIDGESTONE |
94108-215H9-00 |
— | ||
|
9
|
9
94209-21229-00 301 Tube80/100C-21 TR4; BRIDGESTONE |
94209-21229-00 |
US $40.70 |
||
|
10
|
10
94330-21084-00 Band, Rim (1.60-21)3.00-21; BRIDGESTONE |
94330-21084-00 |
from US $4.39 |
||
|
11
|
11
944-18218-53-09 Rim (1.85-21)1.85-21 |
944-18218-53-09 |
US $229.61 |
||
| replacement | |||||
|
11
|
11
944-18218-53-00 Rim (1.85-21)1.85-21 |
944-18218-53-00 |
US $229.61 |
||
|
12
|
12
3VC-F5191-00-00
Housing, Gear
|
3VC-F5191-00-00 |
— | ||
|
13
|
13
5L9-F5195-00-00
Nipple, Spoke
|
5L9-F5195-00-00 |
— | ||
|
14
|
14
903-87158-05-09
Collar
|
903-87158-05-09 |
— | ||
| replacement | |||||
|
14
|
14
903-87158-05-00 Collar |
903-87158-05-00 |
US $14.31 |
||
|
15
|
15
3V9-F5118-00-00 Cover, Hub Dust |
3V9-F5118-00-00 |
US $6.70 |
||
| replacements | |||||
|
15
|
15
3M5-25118-00-00 GASKET 1 |
3M5-25118-00-00 |
US $10.96 |
||
|
15
|
15
5HH-F5118-10-00
Hub Dust Cover
|
5HH-F5118-10-00 |
— | ||
|
16
|
16
2TW-F5181-01-00
Axle,wheel
|
2TW-F5181-01-00 |
— | ||
| replacement | |||||
|
16
|
16
2TW-F5181-00-00
HOSE,BRAKE 1
|
2TW-F5181-00-00 |
— | ||
|
17
|
17
901-71140-06-09 Nut, Castle |
901-71140-06-09 |
US $8.66 |
||
| replacement | |||||
|
17
|
17
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.08 |
||
|
18
|
18
914-02300-28-09 Pin, Cotter |
914-02300-28-09 |
US $5.29 |
||
| replacement | |||||
|
18
|
18
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
19
|
19
2TW-F5197-00-00
Spoke, Outer 1
|
2TW-F5197-00-00 |
— | ||
