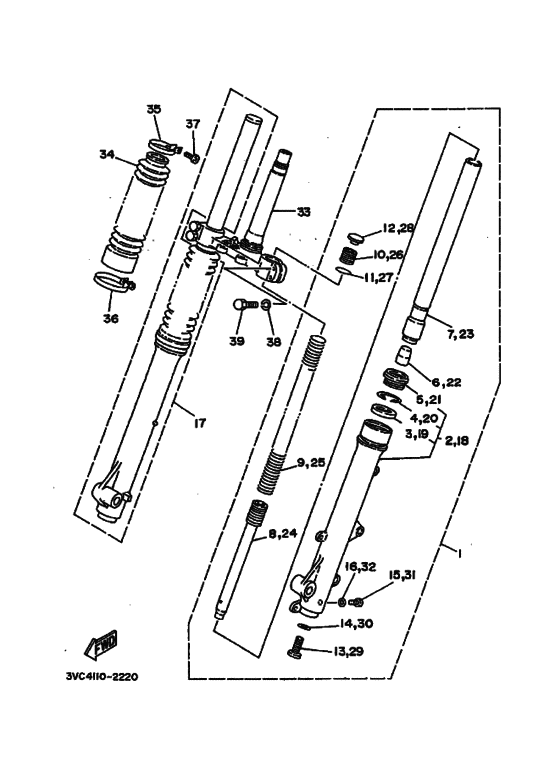

Front fork Diagram Yamaha RT180
- Year
- 1992
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BN2
- Sales region
- Europe (010)
- Engine Capacity
- 180
- Color Variant
- A
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TW-F3102-30-00
Front Fork Assy (L.h)
|
2TW-F3102-30-00 |
— | ||
|
2
|
2
2TW-F3106-00-00
Outer Tube Comp. (L.h)
|
2TW-F3106-00-00 |
— | ||
| replacement | |||||
|
2
|
2
2TW-F3102-00-00
Front Fork L Assy
|
2TW-F3102-00-00 |
— | ||
|
3
|
3
58W-F3145-00-00
Oil Seal
|
58W-F3145-00-00 |
— | ||
|
4
|
4
934-20480-01-09 Oil Seal, Stopper |
934-20480-01-09 |
US $1.30 |
||
|
5
|
5
5L9-F3144-10-00 Seal, Dust |
5L9-F3144-10-00 |
US $70.40 |
||
|
6
|
6
5L9-F3173-10-00 Spindle, Taper |
5L9-F3173-10-00 |
US $13.34 |
||
|
7
|
7
016-F3110-10-00
Inner Tube Comp. 1
|
016-F3110-10-00 |
— | ||
| replacement | |||||
|
7
|
7
2TW-F3110-A0-00
Inner Tube Comp.1
|
2TW-F3110-A0-00 |
— | ||
|
8
|
8
016-F3170-01-00
Cylinder. Comp., Front Fork (
|
016-F3170-01-00 |
— | ||
|
9
|
9
58W-F3141-00-00
Spring, Front Fork
|
58W-F3141-00-00 |
— | ||
|
10
|
10
5L9-F3111-10-00 Bolt, Cap |
5L9-F3111-10-00 |
US $28.89 |
||
|
11
|
11
58W-F3114-00-00 Gasket |
58W-F3114-00-00 |
US $9.18 |
||
|
12
|
12
5L9-F3168-10-00 Cap, Fornt Fork |
5L9-F3168-10-00 |
US $1.78 |
||
|
13
|
13
3V9-F3181-00-00 Bolt, Hexagon Socket Head |
3V9-F3181-00-00 |
US $7.45 |
||
| replacement | |||||
|
13
|
13
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
14
|
14
902-01108-01-09 Gasket |
902-01108-01-09 |
US $14.24 |
||
| replacement | |||||
|
14
|
14
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
15
|
15
925-01040-08-09 Screw, Pan Head (92503-04008- |
925-01040-08-09 |
US $5.29 |
||
| replacement | |||||
|
15
|
15
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
16
|
16
5L9-F3129-00-00
Gasket, Drain Plug
|
5L9-F3129-00-00 |
— | ||
|
17
|
17
2TW-F3103-30-00
Front Fork Assy (R.h)
|
2TW-F3103-30-00 |
— | ||
|
18
|
18
2TW-F3107-00-00 Outer Tube Comp. (R.h) |
2TW-F3107-00-00 |
US $865.03 |
||
|
19
|
19
58W-F3145-00-00
Oil Seal
|
58W-F3145-00-00 |
— | ||
|
20
|
20
934-20480-01-09 Oil Seal, Stopper |
934-20480-01-09 |
US $1.30 |
||
|
21
|
21
5L9-F3144-10-00 Seal, Dust |
5L9-F3144-10-00 |
US $70.40 |
||
|
22
|
22
5L9-F3173-10-00 Spindle, Taper |
5L9-F3173-10-00 |
US $13.34 |
||
|
23
|
23
016-F3110-10-00
Inner Tube Comp. 1
|
016-F3110-10-00 |
— | ||
| replacement | |||||
|
23
|
23
2TW-F3110-A0-00
Inner Tube Comp.1
|
2TW-F3110-A0-00 |
— | ||
|
24
|
24
016-F3170-01-00
Cylinder. Comp., Front Fork (
|
016-F3170-01-00 |
— | ||
|
25
|
25
58W-F3141-00-00
Spring, Front Fork
|
58W-F3141-00-00 |
— | ||
|
26
|
26
5L9-F3111-10-00 Bolt, Cap |
5L9-F3111-10-00 |
US $28.89 |
||
|
27
|
27
58W-F3114-00-00 Gasket |
58W-F3114-00-00 |
US $9.18 |
||
|
28
|
28
5L9-F3168-10-00 Cap, Fornt Fork |
5L9-F3168-10-00 |
US $1.78 |
||
|
29
|
29
3V9-F3181-00-00 Bolt, Hexagon Socket Head |
3V9-F3181-00-00 |
US $7.45 |
||
| replacement | |||||
|
29
|
29
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
30
|
30
902-01108-01-09 Gasket |
902-01108-01-09 |
US $14.24 |
||
| replacement | |||||
|
30
|
30
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
31
|
31
925-01040-08-09 Screw, Pan Head (92503-04008- |
925-01040-08-09 |
US $5.29 |
||
| replacement | |||||
|
31
|
31
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
32
|
32
5L9-F3129-00-00
Gasket, Drain Plug
|
5L9-F3129-00-00 |
— | ||
|
33
|
33
2TW-F3340-00-00
Under Bracket Comp
|
2TW-F3340-00-00 |
— | ||
| replacement | |||||
|
33
|
33
2TW-F3340-10-35
Under Bracket
|
2TW-F3340-10-35 |
— | ||
|
34
|
34
37N-23191-30-00
Boot,vivid Magenta Solid 2
|
37N-23191-30-00 |
— | ||
|
35
|
35
5L9-F3192-10-00
Band
|
5L9-F3192-10-00 |
— | ||
|
36
|
36
904-60581-41-00 Clamp, Hose |
904-60581-41-00 |
from US $3.82 |
||
| replacement | |||||
|
36
|
36
90450-58002-00 Hose Clamp Assy |
90450-58002-00 |
from US $4.53 |
||
|
37
|
37
925-06040-15-09 Screw, Pan Head |
925-06040-15-09 |
US $5.29 |
||
| replacement | |||||
|
37
|
37
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
38
|
38
92902-08100-00 Washer, Spring |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
38
|
38
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
39
|
39
973-22080-30-09 Bolt |
973-22080-30-09 |
US $2.83 |
||
| replacements | |||||
|
39
|
39
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
39
|
39
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
