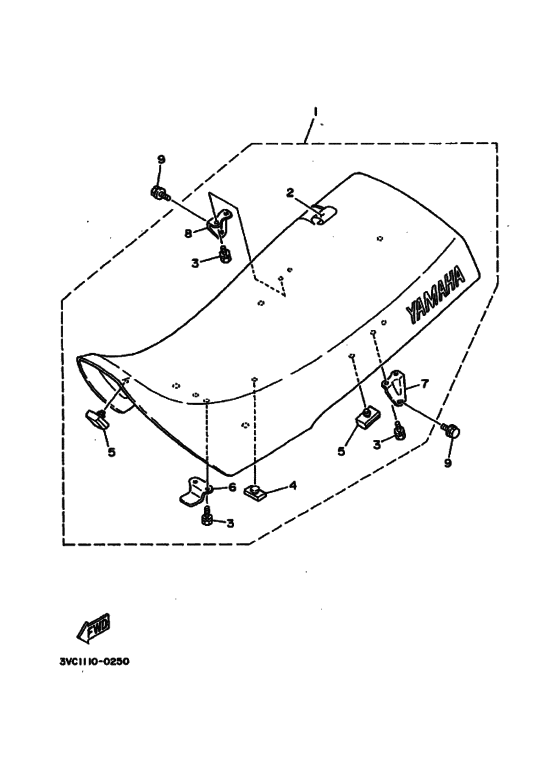

Seat Diagram Yamaha RT180
- Year
- 1992
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BN2
- Sales region
- Europe (010)
- Engine Capacity
- 180
- Color Variant
- A
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-F4770-00-00 Semi-Double Seat AssemblyVIVID MAGENTA |
3VC-F4770-00-00 |
US $714.33 |
||
| replacement | |||||
|
1
|
1
2TW-F4770-40-00 Semi-Double Seat AVIVID MAGENTA |
2TW-F4770-40-00 |
US $1,327.60 |
||
|
2
|
2
3VC-F4731-00-00
Cover, Seat
|
3VC-F4731-00-00 |
— | ||
|
3
|
3
975-01061-12-09 Bolt, With Washer |
975-01061-12-09 |
US $2.52 |
||
| replacement | |||||
|
3
|
3
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
4
|
4
5L9-F4724-00-00 Damper, Seat |
5L9-F4724-00-00 |
US $9.40 |
||
| replacement | |||||
|
4
|
4
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.10 |
||
|
5
|
5
502-29472-00-00
Pad, Seat
|
502-29472-00-00 |
— | ||
|
6
|
6
5L9-F4748-00-00
Bracket, Seat
|
5L9-F4748-00-00 |
— | ||
|
7
|
7
5L9-F4738-00-00
Bracket, Seat
|
5L9-F4738-00-00 |
— | ||
| replacement | |||||
|
7
|
7
5L9-F4738-10-00
Bracket, Seat
|
5L9-F4738-10-00 |
— | ||
|
8
|
8
5L9-F4728-00-00 Bracket, Seat |
5L9-F4728-00-00 |
US $6.12 |
||
| replacement | |||||
|
8
|
8
5L9-F4728-10-00 Bracket, Seat |
5L9-F4728-10-00 |
US $5.63 |
||
|
9
|
9
975-06082-12-09 Bolt, W/washer |
975-06082-12-09 |
US $1.73 |
||
| replacements | |||||
|
9
|
9
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
9
|
9
975-06085-12-00 Bolt, With Washer |
975-06085-12-00 |
US $0.59 |
||
