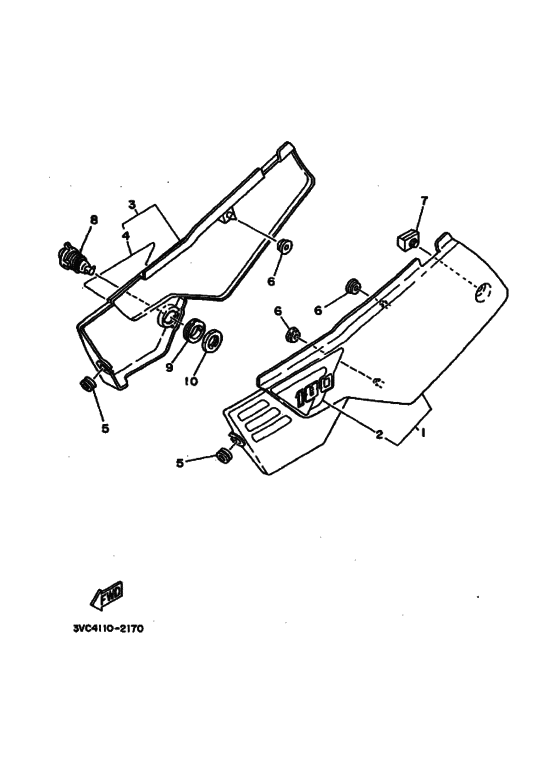

Side cover Diagram Yamaha RT180
- Year
- 1992
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BN2
- Sales region
- Europe (010)
- Engine Capacity
- 180
- Color Variant
- A
- Model
- RT180
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-F1710-20-00
Side Cover Assembly 1
|
3VC-F1710-20-00 |
— | ||
| replacement | |||||
|
1
|
1
3VC-F1711-20-00
Side Cover (Left), Black
|
3VC-F1711-20-00 |
— | ||
|
2
|
2
3VC-F1786-20-00 Emblem 6 |
3VC-F1786-20-00 |
US $58.75 |
||
|
3
|
3
3VC-F1720-20-00
Side Cover Assembly 2
|
3VC-F1720-20-00 |
— | ||
| replacement | |||||
|
3
|
3
3VC-F1720-00-36
Side Cover Assembly 2 (3Vc-F172
|
3VC-F1720-00-36 |
— | ||
|
4
|
4
3VC-F1787-20-00
Emblem 7
|
3VC-F1787-20-00 |
— | ||
|
5
|
5
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
6
|
6
90480-13197-00 Grommet |
90480-13197-00 |
from US $2.27 |
||
| replacement | |||||
|
6
|
6
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
7
|
7
502-29472-00-00
Pad, Seat
|
502-29472-00-00 |
— | ||
|
8
|
8
3VC-F178K-00-00
Lock Assembly
|
3VC-F178K-00-00 |
— | ||
|
9
|
9
90480-24186-00 Grommet |
90480-24186-00 |
from US $1.84 |
||
|
10
|
10
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
