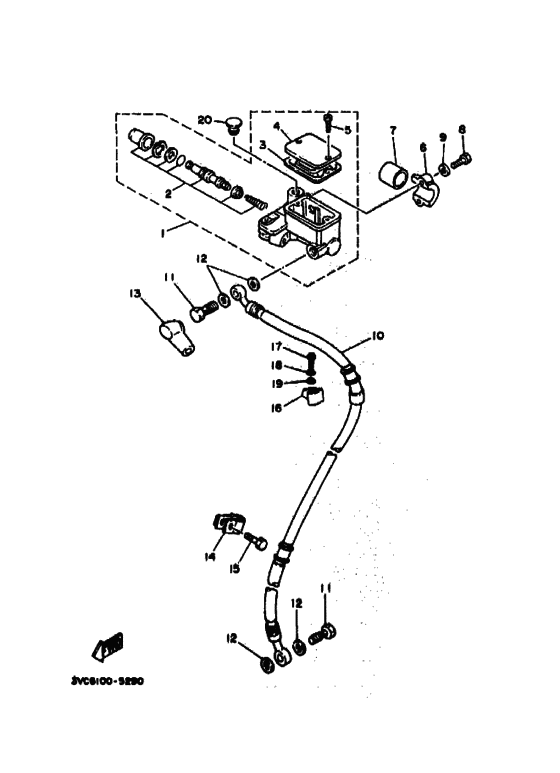

Front master cylinder Diagram Yamaha RT180
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BN4
- Sales region
- Europe (010)
- Engine Capacity
- 180
- Color Variant
- A
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39F-25870-00-00 Master Cylinder Sub Assy |
39F-25870-00-00 |
from US $280.46 |
||
|
2
|
2
59X-W0041-00-00 Cyl Kit,master |
59X-W0041-00-00 |
from US $55.26 |
||
| replacement | |||||
|
2
|
2
5VK-25807-00-00 Cylinder Kit, Master |
5VK-25807-00-00 |
from US $60.93 |
||
|
3
|
3
55U-25854-00-00 Gasket, Diaphragm |
55U-25854-00-00 |
from US $10.48 |
||
|
4
|
4
2KF-25852-01-00 Cap, Reservoir (Fron |
2KF-25852-01-00 |
from US $25.27 |
||
| replacement | |||||
|
4
|
4
2KF-25852-02-00 Cap, Reservoir (Front) |
2KF-25852-02-00 |
from US $25.27 |
||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.34 |
||
|
6
|
6
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
7
|
7
905-60228-07-09
Spacer
|
905-60228-07-09 |
— | ||
|
8
|
8
973-26060-25-09 Bolt |
973-26060-25-09 |
US $2.52 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
9
|
9
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
10
|
10
2TW-F5872-10-00 Hose, Brake 1 |
2TW-F5872-10-00 |
US $234.99 |
||
| replacement | |||||
|
10
|
10
2TW-F5872-19-00 Brake Hose 1 |
2TW-F5872-19-00 |
US $215.51 |
||
|
11
|
11
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
11
|
11
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
12
|
12
90201-10886-00 Washer, Plate |
90201-10886-00 |
US $1.28 |
||
|
13
|
13
3V9-F5862-00-00 Boot, Master Cylinder |
3V9-F5862-00-00 |
US $8.86 |
||
|
14
|
14
4BN-F3318-00-00
Holder, Cable 1
|
4BN-F3318-00-00 |
— | ||
|
15
|
15
91317-06010-00 Bolt |
91317-06010-00 |
from US $1.07 |
||
|
16
|
16
4BN-F5875-00-00 Holder, Brake Hose 1 |
4BN-F5875-00-00 |
US $7.15 |
||
|
17
|
17
901-59060-84-00
Screw, With Washer
|
901-59060-84-00 |
— | ||
| replacements | |||||
|
17
|
17
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
17
|
17
90159-06082-00 Screw, Panhead W/washer (22F) |
90159-06082-00 |
from US $2.55 |
||
|
18
|
18
929-06061-00-09 Washer, Spring |
929-06061-00-09 |
US $6.35 |
||
| replacement | |||||
|
18
|
18
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
19
|
19
902-01063-80-09
Washer, Plate
|
902-01063-80-09 |
— | ||
| replacements | |||||
|
19
|
19
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
19
|
19
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
20
|
20
2WL-F151W-00-00 Cap |
2WL-F151W-00-00 |
US $1.21 |
||
| replacement | |||||
|
20
|
20
2WL-F5825-00-00 Cap |
2WL-F5825-00-00 |
US $1.19 |
||
