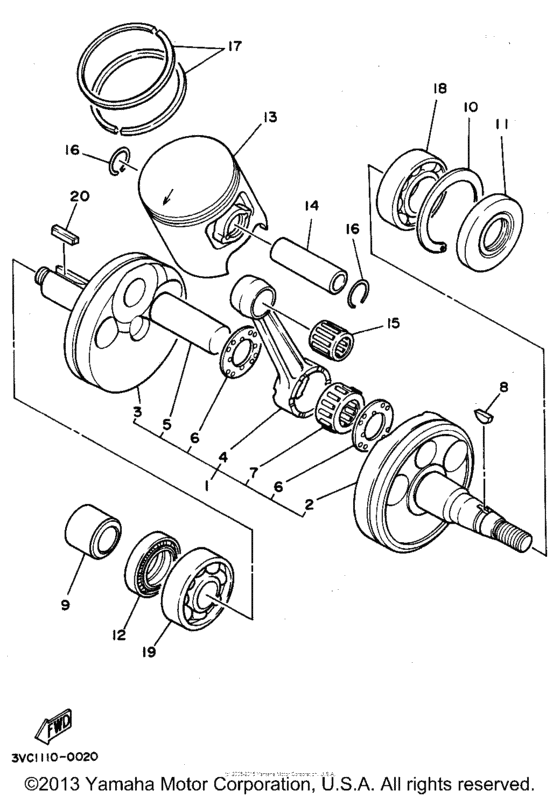

Crankshaft & Piston Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5L9-E1400-00-00
Crankshaft Assembly
|
5L9-E1400-00-00 |
— | ||
|
2
|
2
5L9-E1412-00-00 Crank 1 |
5L9-E1412-00-00 |
US $207.29 |
||
|
3
|
3
5L9-E1422-00-00 Crank 2 |
5L9-E1422-00-00 |
US $145.46 |
||
|
4
|
4
25V-11651-00-00
Rod, Connecting 1
|
25V-11651-00-00 |
— | ||
|
5
|
5
2H3-E1681-00-00 Pin, Crank 1 |
2H3-E1681-00-00 |
US $59.90 |
||
| replacement | |||||
|
5
|
5
3AK-11681-00-00 Pin, Crank 1 |
3AK-11681-00-00 |
US $59.06 |
||
|
6
|
6
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $3.64 |
||
|
7
|
7
93310-422L0-00 Bearing |
93310-422L0-00 |
from US $9.26 |
||
|
8
|
8
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
|
9
|
9
903-87208-23-09 Collar |
903-87208-23-09 |
US $14.51 |
||
| replacement | |||||
|
9
|
9
903-87208-23-00 Collar |
903-87208-23-00 |
US $14.56 |
||
|
10
|
10
934-50520-10-00 Circlip |
934-50520-10-00 |
US $2.60 |
||
|
11
|
11
931-02250-18-00 Oil Seal |
931-02250-18-00 |
US $9.31 |
||
|
12
|
12
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $5.96 |
||
|
13
|
13
58W-E1631-U0-0B
Piston (Std)
|
58W-E1631-U0-0B |
— | ||
|
13
|
13
58W-E1635-00-00 Piston (0.25Mm O/s)0.25MM O/S AP |
58W-E1635-00-00 |
US $111.51 |
||
|
13
|
13
58W-E1636-00-00
Piston (0.50Mm O/s)
0.50MM O/S AP |
58W-E1636-00-00 |
— | ||
|
13
|
13
58W-E1637-00-00 Piston (0.75Mm O/s)0.75MM O/S AP |
58W-E1637-00-00 |
US $111.76 |
||
|
14
|
14
3V9-E1633-00-00 Pin, Piston |
3V9-E1633-00-00 |
US $19.85 |
||
| replacement | |||||
|
14
|
14
4L0-11633-00-00 Pin, Piston |
4L0-11633-00-00 |
from US $8.60 |
||
|
15
|
15
93310-216E1-00 Bearing |
93310-216E1-00 |
from US $8.28 |
||
|
16
|
16
93450-17044-00 Circlip |
93450-17044-00 |
from US $1.56 |
||
|
17
|
17
3V9-E1611-00-00
Ring, Piston
|
3V9-E1611-00-00 |
— | ||
|
17
|
17
3V9-E1611-10-00 Ring, PistonAP |
3V9-E1611-10-00 |
US $88.85 |
||
|
17
|
17
3V9-E1611-20-00 Ring, PistonAP |
3V9-E1611-20-00 |
US $89.95 |
||
|
17
|
17
3V9-E1611-30-00 Ring, PistonAP |
3V9-E1611-30-00 |
US $92.36 |
||
|
18
|
18
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.20 |
||
|
19
|
19
93306-30439-00 Bearing (4Ed)4ED |
93306-30439-00 |
from US $26.21 |
||
| replacement | |||||
|
19
|
19
933-06304-42-00 Bearing4ED |
933-06304-42-00 |
from US $26.21 |
||
|
20
|
20
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
