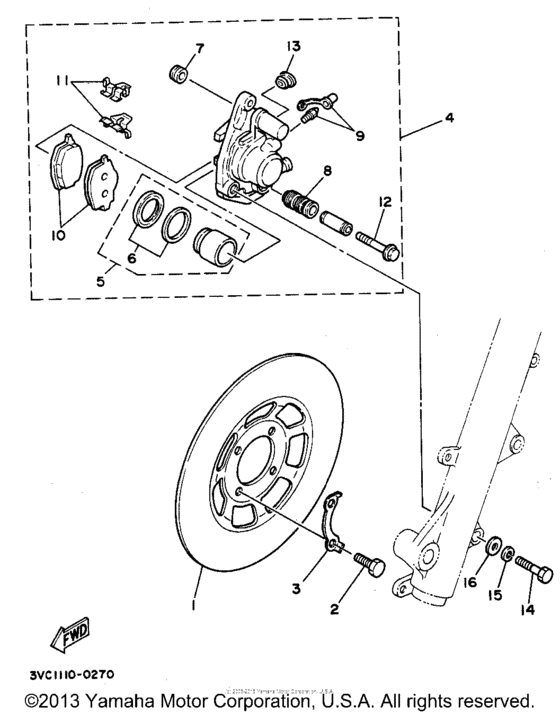

Front brake caliper Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3V9-F5831-00-00
Disc, Brake (Right)
|
3V9-F5831-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3M5-25831-00-00
Disc, Brake (Right)
|
3M5-25831-00-00 |
— | ||
|
2
|
2
90109-08367-00 Bolt (341-25411-00)341-25411-00 |
90109-08367-00 |
US $3.83 |
||
| replacement | |||||
|
2
|
2
97017-08025-00 Bolt341-25411-00 |
97017-08025-00 |
from US $1.21 |
||
|
3
|
3
3V9-F5412-00-00 Washer |
3V9-F5412-00-00 |
US $1.64 |
||
|
4
|
4
55W-2580T-00-00
Caliper Ass''s (Left)
|
55W-2580T-00-00 |
— | ||
|
5
|
5
55W-W0057-00-00
Piston Assembly, Caliper
|
55W-W0057-00-00 |
— | ||
|
6
|
6
55W-W0047-00-00 Caliper Seal Kit |
55W-W0047-00-00 |
from US $44.63 |
||
|
7
|
7
5R2-25937-00-00 Boot 2 |
5R2-25937-00-00 |
from US $19.55 |
||
|
8
|
8
34X-25937-00-00 Boot 2 |
34X-25937-00-00 |
from US $19.41 |
||
|
9
|
9
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
9
|
9
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $8.08 |
||
|
10
|
10
55W-W0045-01-00 Brake Pad Kit |
55W-W0045-01-00 |
from US $51.28 |
||
|
11
|
11
55W-25919-00-00 Support, Pad |
55W-25919-00-00 |
US $46.80 |
||
|
12
|
12
2GV-25926-00-00 Bolt |
2GV-25926-00-00 |
from US $6.10 |
||
| replacement | |||||
|
12
|
12
5KN-25926-01-00 Bolt |
5KN-25926-01-00 |
from US $8.78 |
||
|
13
|
13
34X-25845-00-00 Cap, Indicator |
34X-25845-00-00 |
from US $7.23 |
||
|
14
|
14
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.13 |
||
|
15
|
15
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
16
|
16
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
