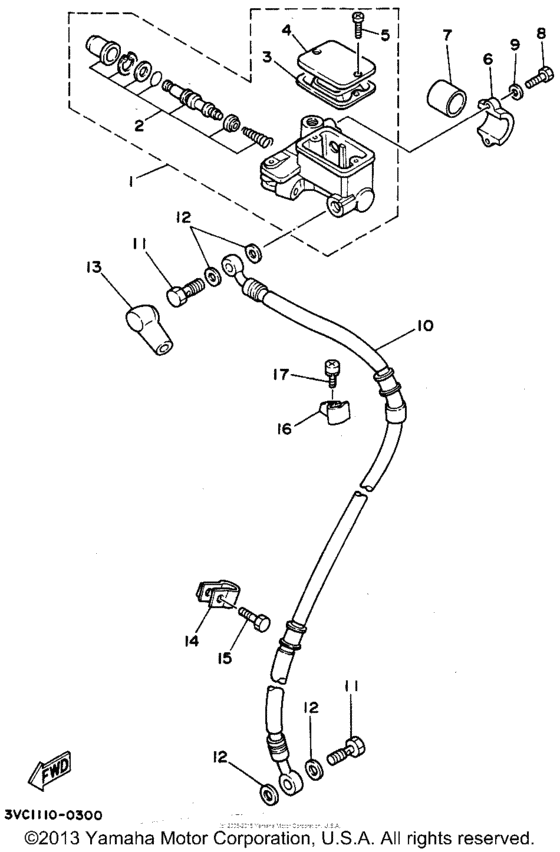

Front master cylinder Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2KF-25850-00-00 Master Cylinder Assy |
2KF-25850-00-00 |
from US $182.37 |
||
| replacement | |||||
|
1
|
1
5CG-2583T-12-00 Master Cylinder Assy |
5CG-2583T-12-00 |
from US $138.55 |
||
|
2
|
2
59X-W0041-00-00 Cyl Kit,master |
59X-W0041-00-00 |
from US $55.26 |
||
| replacement | |||||
|
2
|
2
5VK-25807-00-00 Cylinder Kit, Master |
5VK-25807-00-00 |
from US $60.93 |
||
|
3
|
3
55U-25854-00-00 Gasket, Diaphragm |
55U-25854-00-00 |
from US $10.48 |
||
|
4
|
4
2KF-25852-01-00 Cap, Reservoir (Fron |
2KF-25852-01-00 |
from US $25.27 |
||
| replacement | |||||
|
4
|
4
2KF-25852-02-00 Cap, Reservoir (Front) |
2KF-25852-02-00 |
from US $25.27 |
||
|
5
|
5
98506-04012-00 Screw, Pan Head |
98506-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
90560-22281-00 Spacer |
90560-22281-00 |
from US $8.64 |
||
|
8
|
8
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
9
|
9
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
10
|
10
2TW-F5872-00-00 Hose,brake 1 |
2TW-F5872-00-00 |
US $215.51 |
||
| replacement | |||||
|
10
|
10
2TW-F5872-09-00 COVER,HUB DUST |
2TW-F5872-09-00 |
US $215.51 |
||
|
11
|
11
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
11
|
11
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
12
|
12
902-01108-86-09
Washer, Plate
|
902-01108-86-09 |
— | ||
| replacement | |||||
|
12
|
12
90201-10886-00 Washer, Plate |
90201-10886-00 |
US $1.28 |
||
|
13
|
13
3V9-F5862-00-00 Boot, Master Cylinder |
3V9-F5862-00-00 |
US $8.86 |
||
|
14
|
14
1YH-F5875-00-00 Holder, Brake Hose 1 |
1YH-F5875-00-00 |
US $9.20 |
||
| replacement | |||||
|
14
|
14
3EN-25875-20-00 Holder, Brake Hose 1 |
3EN-25875-20-00 |
US $9.20 |
||
|
15
|
15
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
15
|
15
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
16
|
16
2TW-F5875-00-00 Holder, Brake Hose 1 |
2TW-F5875-00-00 |
US $9.54 |
||
|
17
|
17
975-06061-12-09 Scre, Pan Head |
975-06061-12-09 |
US $0.40 |
||
| replacement | |||||
|
17
|
17
970-2N060-12-00 BOLT,HEXAGON |
970-2N060-12-00 |
US $0.58 |
||
