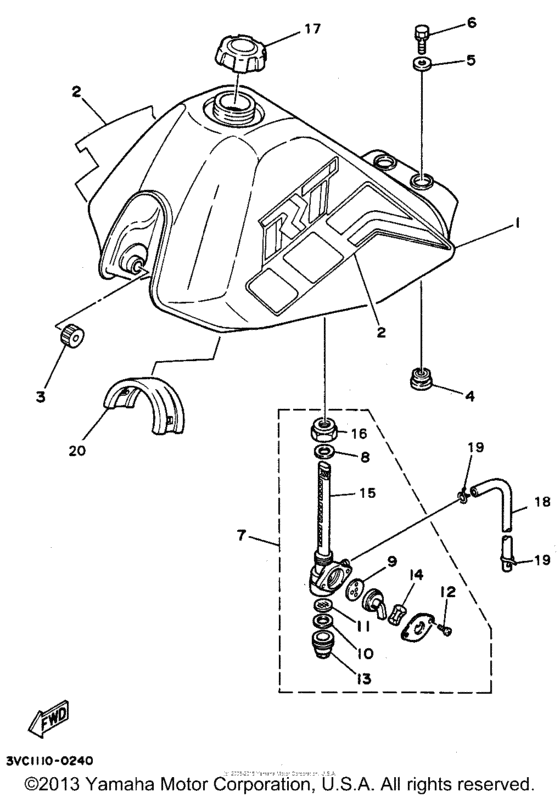

Fuel tank Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-F4110-00-33
Fuel Tank Comp
UR YAMAHA BLACK |
3VC-F4110-00-33 |
— | ||
|
1
|
1
3VC-F4110-00-36
Fuel Tank Comp
UR WHITE |
3VC-F4110-00-36 |
— | ||
|
2
|
2
3VC-F4240-00-33
Graphic Set
UR YAMAHA BLACK |
3VC-F4240-00-33 |
— | ||
|
2
|
2
3VC-F4240-00-36
Graphic Set
UR WHITE |
3VC-F4240-00-36 |
— | ||
|
3
|
3
5L9-F4181-00-00 Damper, Locating 1 |
5L9-F4181-00-00 |
US $4.32 |
||
| replacement | |||||
|
3
|
3
3TB-24181-00-00 Damper, Locating 1 |
3TB-24181-00-00 |
from US $4.96 |
||
|
4
|
4
904-80222-31-00
Grommet
|
904-80222-31-00 |
— | ||
|
5
|
5
902-01060-73-00
Washer, Plate
|
902-01060-73-00 |
— | ||
| replacement | |||||
|
5
|
5
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
6
|
6
975-02061-12-09 Bolt W/washer (97501-06112-0997501-06112-09 |
975-02061-12-09 |
US $2.52 |
||
| replacement | |||||
|
6
|
6
97017-06012-00 Bolt97501-06112-09 |
97017-06012-00 |
from US $1.21 |
||
|
7
|
7
58W-F4500-00-00
Fuel Cock Assembly 1
|
58W-F4500-00-00 |
— | ||
| replacement | |||||
|
7
|
7
2TW-F4500-02-00
Fuel Cock Assembly 1
|
2TW-F4500-02-00 |
— | ||
|
8
|
8
23L-F4532-00-00
Gasket
|
23L-F4532-00-00 |
— | ||
| replacement | |||||
|
8
|
8
3VC-F4532-00-00
Gasket
|
3VC-F4532-00-00 |
— | ||
|
9
|
9
23L-F4523-00-00
Valve
|
23L-F4523-00-00 |
— | ||
| replacements | |||||
|
9
|
9
137-24523-00-00 Petcock Packing Valve |
137-24523-00-00 |
from US $8.36 |
||
|
9
|
9
2MW-F4523-00-00 Valve |
2MW-F4523-00-00 |
US $28.48 |
||
|
10
|
10
23L-F4522-00-00
Gasket
|
23L-F4522-00-00 |
— | ||
| replacement | |||||
|
10
|
10
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
11
|
11
502-F4515-10-00 Net, Filter 2 |
502-F4515-10-00 |
US $3.83 |
||
| replacement | |||||
|
11
|
11
434-24576-00-00
Washer
|
434-24576-00-00 |
— | ||
|
12
|
12
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
13
|
13
502-F4521-00-00
Cup, Filter
|
502-F4521-00-00 |
— | ||
| replacement | |||||
|
13
|
13
434-24521-00-00
Cup, Filter
|
434-24521-00-00 |
— | ||
|
14
|
14
23L-F4518-00-00
Washer, Wave
|
23L-F4518-00-00 |
— | ||
| replacement | |||||
|
14
|
14
132-24518-00-00 Washer, Wave |
132-24518-00-00 |
from US $4.25 |
||
|
15
|
15
58W-F4536-00-00 Strainer |
58W-F4536-00-00 |
US $9.44 |
||
| replacement | |||||
|
15
|
15
23L-F4536-00-00 Strainer |
23L-F4536-00-00 |
US $8.95 |
||
|
16
|
16
502-F4531-00-00 Nut |
502-F4531-00-00 |
US $4.88 |
||
|
17
|
17
3Y1-24610-01-00 Cap Assembly |
3Y1-24610-01-00 |
from US $65.07 |
||
|
18
|
18
90445-09083-00 Hose (L155) |
90445-09083-00 |
from US $6.52 |
||
| replacements | |||||
|
18
|
18
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
18
|
18
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
19
|
19
904-67088-00-09
Clip
|
904-67088-00-09 |
— | ||
| replacement | |||||
|
19
|
19
904-6709W-02-00
Clip
|
904-6709W-02-00 |
— | ||
|
20
|
20
5L9-F4182-00-00
Damper, Locating 2
|
5L9-F4182-00-00 |
— | ||
