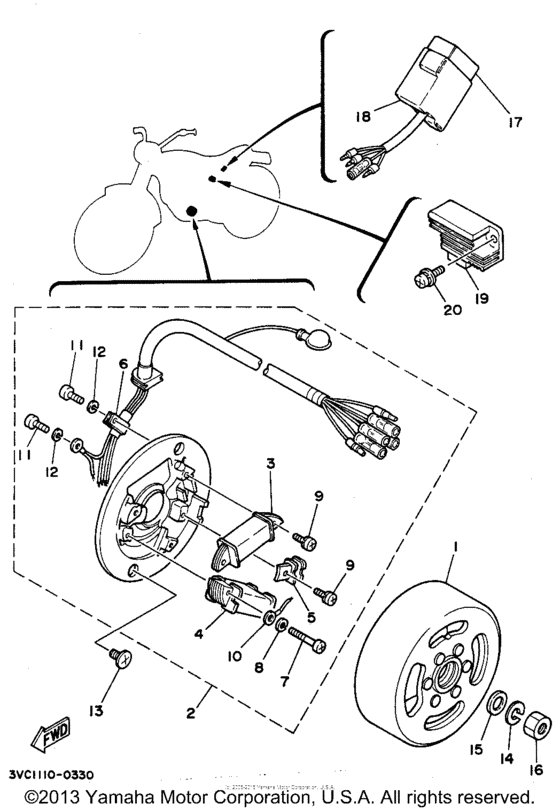

Generator Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23K-H5550-00-00
Rotor Assembly
|
23K-H5550-00-00 |
— | ||
|
2
|
2
42L-H5560-00-00
Base Assembly
|
42L-H5560-00-00 |
— | ||
|
3
|
3
4Y4-85520-M0-00 Coil, Charge |
4Y4-85520-M0-00 |
from US $72 |
||
| replacement | |||||
|
3
|
3
4Y4-85520-M1-00 COIL CHARGE |
4Y4-85520-M1-00 |
from US $35.72 |
||
|
4
|
4
42L-H1313-00-00 Coil, Lighting 1 |
42L-H1313-00-00 |
US $41.47 |
||
|
5
|
5
23L-85580-M0-00
Coil, Pulser
|
23L-85580-M0-00 |
— | ||
|
6
|
6
90461-05036-00 Clamp |
90461-05036-00 |
from US $2.55 |
||
|
7
|
7
985-02040-30-09
Screw,pan Head
|
985-02040-30-09 |
— | ||
| replacement | |||||
|
7
|
7
985-17040-30-00
Screw, Pan Head(1Ke)
|
985-17040-30-00 |
— | ||
|
8
|
8
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
9
|
9
97601-04112-00 Screw, Pan Head |
97601-04112-00 |
from US $1.35 |
||
| replacement | |||||
|
9
|
9
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
10
|
10
2H3-H5569-00-00
Terminal, Earth 2
|
2H3-H5569-00-00 |
— | ||
|
11
|
11
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
977-02060-12-09 Screw, Tapping |
977-02060-12-09 |
US $0.76 |
||
| replacement | |||||
|
13
|
13
927-0N060-12-00 Tapping Screw |
927-0N060-12-00 |
US $0.25 |
||
|
14
|
14
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
15
|
15
90201-12593-00 Washer, Plate |
90201-12593-00 |
from US $4.53 |
||
|
16
|
16
90170-12347-00 Nut, Hexagon |
90170-12347-00 |
from US $1.70 |
||
|
17
|
17
23K-85540-M0-00
C.d.i. Unit Assembly
|
23K-85540-M0-00 |
— | ||
|
18
|
18
23K-H5546-01-00
Band
|
23K-H5546-01-00 |
— | ||
|
19
|
19
22J-81960-92-00 Rectifier/reg Assembly |
22J-81960-92-00 |
from US $140.92 |
||
|
20
|
20
976-02053-16-09 Screw, Pan Head With Washer |
976-02053-16-09 |
US $1.44 |
||
