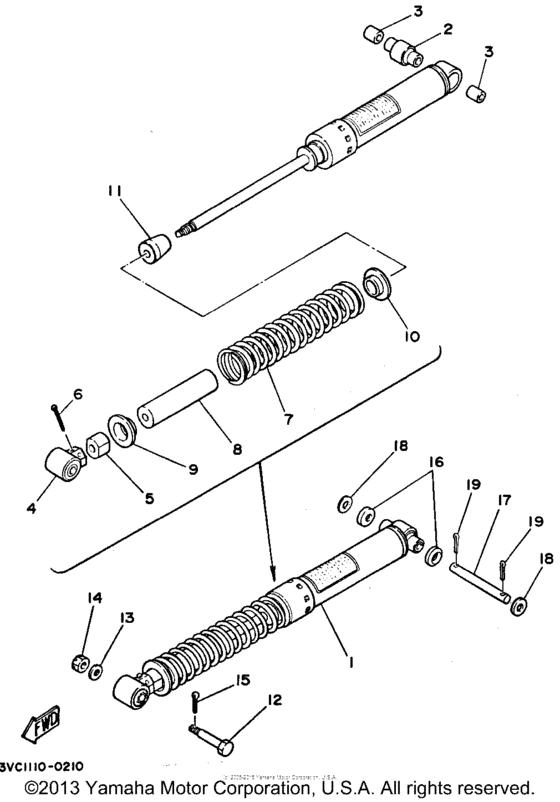

Rear shocks Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-F2210-00-00
Shock Absorber Assembly, Rear
|
3VC-F2210-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3VC-F2210-20-00
Shock Absorber Assembly, Rear
|
3VC-F2210-20-00 |
— | ||
|
2
|
2
3R4-22226-00-00 Bush, Shock Abs Lwr |
3R4-22226-00-00 |
from US $38.97 |
||
|
3
|
3
90380-12051-00 Bush, Solid |
90380-12051-00 |
from US $5.67 |
||
|
4
|
4
5L9-F2219-00-00 Bracket, Upper |
5L9-F2219-00-00 |
US $144.83 |
||
|
5
|
5
5L9-F2213-00-00 Seat, Spring Upper |
5L9-F2213-00-00 |
US $29.54 |
||
|
6
|
6
91401-30040-00 Pin,cotter |
91401-30040-00 |
from US $4.45 |
||
| replacement | |||||
|
6
|
6
914-90300-45-00 Pin, Cotter |
914-90300-45-00 |
from US $4.53 |
||
|
7
|
7
8Y8-83550-00-00 Speedometer Cable Assy |
8Y8-83550-00-00 |
from US $21.68 |
||
|
8
|
8
5L9-F2496-00-00
Sleeve, Rod
|
5L9-F2496-00-00 |
— | ||
|
9
|
9
5L9-F2214-00-00 Guide, Spring 1 |
5L9-F2214-00-00 |
US $15.17 |
||
|
10
|
10
3VC-F2223-00-00 Seat, Spring Lower |
3VC-F2223-00-00 |
US $18.76 |
||
|
11
|
11
2A6-21637-00-00
Clamp, Wire
|
2A6-21637-00-00 |
— | ||
|
12
|
12
90109-10550-00 Bolt |
90109-10550-00 |
from US $8.86 |
||
| replacement | |||||
|
12
|
12
90109-10453-00 Bolt (1M1) |
90109-10453-00 |
from US $10.48 |
||
|
13
|
13
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
14
|
14
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
14
|
14
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
15
|
15
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
16
|
16
5L9-F2129-00-00 Cover, Thrust 2 |
5L9-F2129-00-00 |
US $14.67 |
||
| replacement | |||||
|
16
|
16
1W1-22128-00-00 Cover, Thrust 1 |
1W1-22128-00-00 |
from US $10.48 |
||
|
17
|
17
90240-12075-00 Pin, Clevis |
90240-12075-00 |
from US $9.07 |
||
|
18
|
18
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
19
|
19
914-02300-22-09 Pin, Cotter |
914-02300-22-09 |
US $5.29 |
||
| replacement | |||||
|
19
|
19
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
