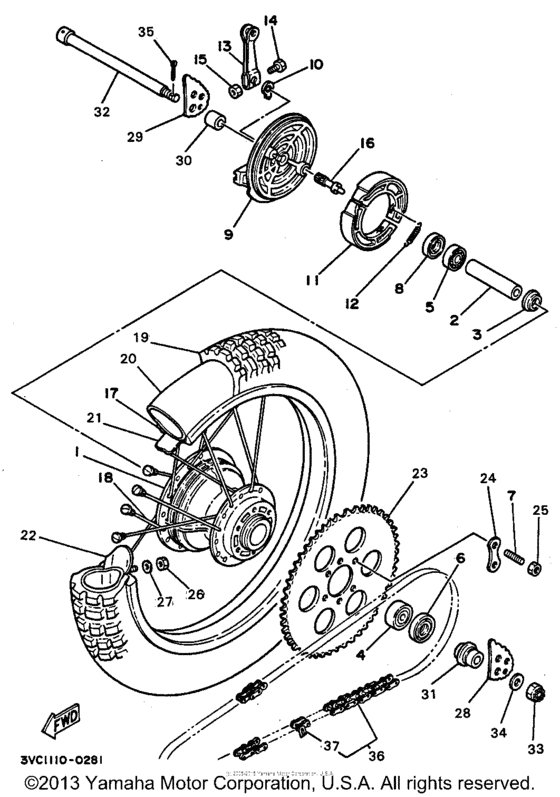

Rear wheel Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5L9-F5311-00-AC Hub, Rear |
5L9-F5311-00-AC |
US $506.77 |
||
|
2
|
2
5L9-F5317-00-00 Spacer, Bearing |
5L9-F5317-00-00 |
from US $25.93 |
||
| replacement | |||||
|
2
|
2
90560-15313-00 Spacer |
90560-15313-00 |
from US $25.93 |
||
|
3
|
3
5L9-F5115-00-00 Flange,spacer 1 |
5L9-F5115-00-00 |
US $5.99 |
||
| replacement | |||||
|
3
|
3
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
4
|
4
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
4
|
4
93306-30212-00 Bearing |
93306-30212-00 |
from US $15.88 |
||
|
5
|
5
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
5
|
5
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.22 |
||
|
6
|
6
93106-26005-00 Oil Seal |
93106-26005-00 |
from US $6.62 |
||
|
7
|
7
90116-10221-00 Bolt, Stud |
90116-10221-00 |
from US $6.61 |
||
|
8
|
8
93104-22018-00 Oil Seal |
93104-22018-00 |
from US $2.66 |
||
|
9
|
9
23K-F5321-00-AC
Plate, Brake Shoe
|
23K-F5321-00-AC |
— | ||
|
10
|
10
5L9-F533A-00-00 Plate, Indicator |
5L9-F533A-00-00 |
US $3.69 |
||
| replacements | |||||
|
10
|
10
5AD-F533A-00-00
Plate, Indicator
|
5AD-F533A-00-00 |
— | ||
|
10
|
10
3Y6-2533A-01-00 Plate, Indicator |
3Y6-2533A-01-00 |
from US $2.55 |
||
|
11
|
11
504-F5330-00-00 Brake Shoe Comp |
504-F5330-00-00 |
US $27 |
||
| replacement | |||||
|
11
|
11
3FA-W253A-00-00 Brake Shoe Kit |
3FA-W253A-00-00 |
from US $32.17 |
||
|
12
|
12
905-06168-01-09 Spring, Tension |
905-06168-01-09 |
US $8.59 |
||
| replacement | |||||
|
12
|
12
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
13
|
13
5L9-F5355-00-00 Lever, Camshaft |
5L9-F5355-00-00 |
US $20.25 |
||
| replacement | |||||
|
13
|
13
1E2-25155-00-00 Lever, Camshaft 1 |
1E2-25155-00-00 |
from US $20.40 |
||
|
14
|
14
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
15
|
15
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
16
|
16
2H3-F5351-00-00 Camshaft |
2H3-F5351-00-00 |
US $29.25 |
||
| replacement | |||||
|
16
|
16
2RH-25351-00-00 Camshaft |
2RH-25351-00-00 |
from US $33.29 |
||
|
17
|
17
944-21188-54-09 Rim (2.15-18)2.15-18 |
944-21188-54-09 |
US $241.51 |
||
| replacement | |||||
|
17
|
17
944-21188-54-00 Rim (2.15-18)2.15-18 |
944-21188-54-00 |
US $206.30 |
||
|
18
|
18
3VC-F5304-00-00
Spoke Set;rear Whl
|
3VC-F5304-00-00 |
— | ||
| replacement | |||||
|
18
|
18
33G-25304-00-00
Spoke Set, Rear
|
33G-25304-00-00 |
— | ||
|
19
|
19
941-10187-N4-00
Tire
|
941-10187-N4-00 |
— | ||
|
20
|
20
94241-18153-00 Tube (4.10-18)4.10-18 BRIDGESTONE |
94241-18153-00 |
US $114.34 |
||
|
21
|
21
94345-18081-00 Band, Rim (2.50-18) |
94345-18081-00 |
from US $4.39 |
||
| replacement | |||||
|
21
|
21
94340-18086-00 Band, Rim (2.50-18) |
94340-18086-00 |
from US $4.39 |
||
|
22
|
22
58W-F5394-00-00 Spacer, Bead |
58W-F5394-00-00 |
US $22.72 |
||
|
23
|
23
3VC-F5451-00-00 Sprocket, Driven (51T)51T |
3VC-F5451-00-00 |
US $60.48 |
||
|
24
|
24
5L9-F5412-00-00 Washer |
5L9-F5412-00-00 |
US $2.25 |
||
| replacement | |||||
|
24
|
24
4LR-F5412-00-00 Washer |
4LR-F5412-00-00 |
US $3.08 |
||
|
25
|
25
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
25
|
25
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
25
|
25
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
26
|
26
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
26
|
26
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
27
|
27
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
28
|
28
5L9-F5388-00-00 Puller, Chain 1 |
5L9-F5388-00-00 |
US $9.34 |
||
| replacement | |||||
|
28
|
28
1W2-25388-01-00 Puller, Chain 1 |
1W2-25388-01-00 |
from US $10.48 |
||
|
29
|
29
5L9-F5389-00-00 Puller, Chain 2 |
5L9-F5389-00-00 |
US $9.20 |
||
| replacement | |||||
|
29
|
29
1W2-25389-01-00 Puller, Chain 2 |
1W2-25389-01-00 |
from US $9.61 |
||
|
30
|
30
90387-15115-00
Collar
|
90387-15115-00 |
— | ||
|
31
|
31
23K-F5383-00-00
Collar, Wheel
|
23K-F5383-00-00 |
— | ||
|
32
|
32
5L9-F5381-01-00 Axle, Wheel |
5L9-F5381-01-00 |
US $8.17 |
||
| replacement | |||||
|
32
|
32
5X3-25381-00-00
Axle, Wheel (2A6-25381-00-00)
|
5X3-25381-00-00 |
— | ||
|
33
|
33
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
33
|
33
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
34
|
34
90201-15238-00 Washer, Plate |
90201-15238-00 |
from US $4.11 |
||
|
35
|
35
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
35
|
35
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
36
|
36
94580-33126-00 Did Chain Did428S-126L |
94580-33126-00 |
from US $47.18 |
||
| replacement | |||||
|
36
|
36
94580-24126-00 Chain(53V) |
94580-24126-00 |
from US $52.50 |
||
|
37
|
37
94680-33001-00 Joint, Chain |
94680-33001-00 |
from US $2.54 |
||
| replacements | |||||
|
37
|
37
94682-09001-00 Joint, Chain (Did 428Hg) |
94682-09001-00 |
from US $3.23 |
||
|
37
|
37
94682-51001-00 Joint, Chain |
94682-51001-00 |
from US $3.83 |
||
