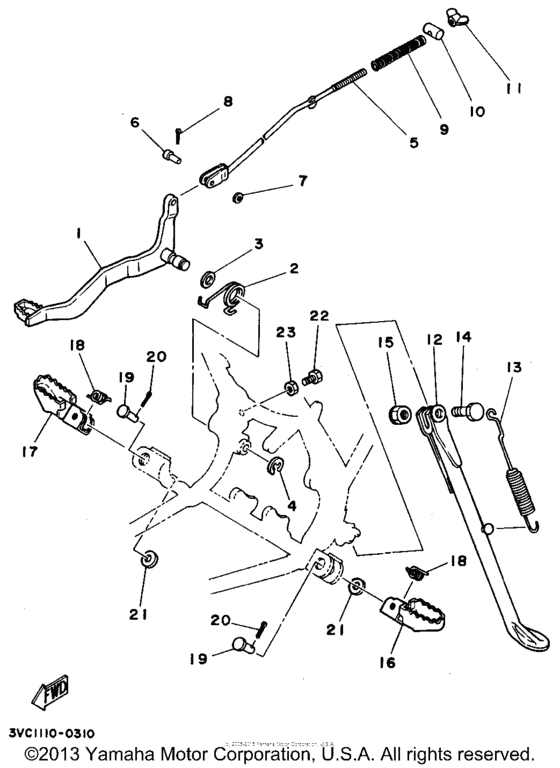

Stand - footrest Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5L9-F7211-01-00
Pedal, Brake
|
5L9-F7211-01-00 |
— | ||
|
2
|
2
90508-32354-00 Spring, Torsion |
90508-32354-00 |
from US $4.68 |
||
|
3
|
3
90201-14212-00 Washer, Plate |
90201-14212-00 |
from US $2.55 |
||
|
4
|
4
934-30108-01-09 Circlip |
934-30108-01-09 |
US $6.35 |
||
| replacement | |||||
|
4
|
4
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
5
|
5
5L9-F7231-00-00 Rod, Brake |
5L9-F7231-00-00 |
US $16.78 |
||
| replacement | |||||
|
5
|
5
5L9-F7231-01-00 Brake Rod |
5L9-F7231-01-00 |
US $16.78 |
||
|
6
|
6
90240-06006-00 Pin, Clevis |
90240-06006-00 |
from US $3.68 |
||
|
7
|
7
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
8
|
8
914-02250-12-09 Pin. Cotter |
914-02250-12-09 |
US $2.52 |
||
| replacement | |||||
|
8
|
8
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
9
|
9
905-01108-01-09 Spring, Compression (90501-108090501-1080 |
905-01108-01-09 |
US $2.81 |
||
| replacement | |||||
|
9
|
9
905-0110W-00-00 Spring, Compression90501-1080 |
905-0110W-00-00 |
US $1.69 |
||
|
10
|
10
902-49128-00-09 Pin (90249-12800-00)90249-12800-00 |
902-49128-00-09 |
US $6.35 |
||
| replacement | |||||
|
10
|
10
902-49120-08-00 Pin90249-12800-00 |
902-49120-08-00 |
from US $1.56 |
||
|
11
|
11
901-79068-01-09 Nut |
901-79068-01-09 |
US $2.63 |
||
| replacement | |||||
|
11
|
11
901-7906W-03-00 Nut |
901-7906W-03-00 |
US $3.85 |
||
|
12
|
12
2TW-F7311-00-00
Stand, Side
|
2TW-F7311-00-00 |
— | ||
|
13
|
13
90507-29008-00 Spring, Tension |
90507-29008-00 |
from US $17.28 |
||
|
14
|
14
901-09106-22-09 Bolt (90109-10622-00)90109-10622-00 |
901-09106-22-09 |
US $4.12 |
||
| replacement | |||||
|
14
|
14
901-0910W-14-00 Bolt90109-10622-00 |
901-0910W-14-00 |
US $2.54 |
||
|
15
|
15
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.24 |
||
|
16
|
16
22W-27411-01-90 Footrest 1 |
22W-27411-01-90 |
from US $13.90 |
||
|
17
|
17
22W-27421-01-90 Footrest 2 (3R1-27421-00)3R1-27421-00 |
22W-27421-01-90 |
from US $36.11 |
||
|
18
|
18
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
19
|
19
917-02080-38-09 Pin |
917-02080-38-09 |
US $5.47 |
||
| replacement | |||||
|
19
|
19
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
20
|
20
914-02250-12-09 Pin. Cotter |
914-02250-12-09 |
US $2.52 |
||
| replacement | |||||
|
20
|
20
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
21
|
21
90201-08085-00 Washer, Plate |
90201-08085-00 |
from US $1.34 |
||
|
22
|
22
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
22
|
22
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
23
|
23
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
