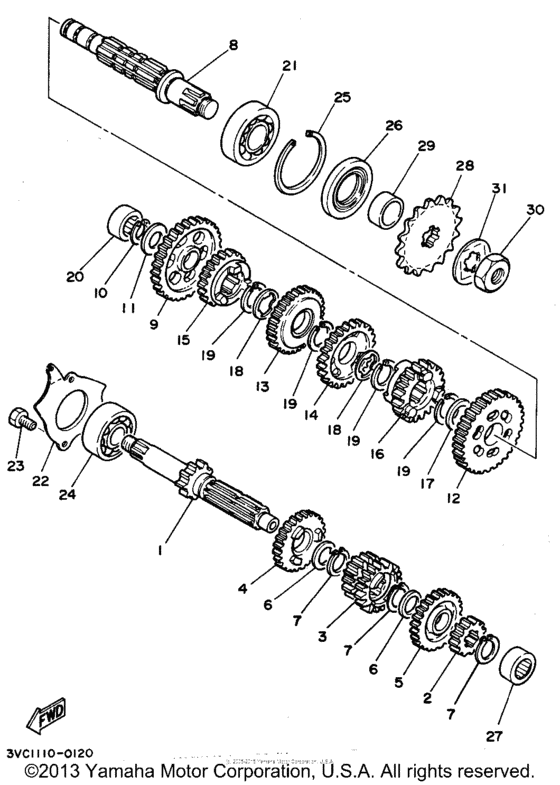

Transmission Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23K-E7411-00-00 Axle, Main |
23K-E7411-00-00 |
US $114.43 |
||
|
2
|
2
23K-E7121-00-00 Gear, 2Nd Pinion2ND PINION |
23K-E7121-00-00 |
US $46.80 |
||
| replacement | |||||
|
2
|
2
4J3-17121-00-00 Gear, 2Nd Pinion (15T)2ND PINION |
4J3-17121-00-00 |
from US $37.69 |
||
|
3
|
3
4J3-17131-00-00 Gear, 3Rd Pinion3RD PINION |
4J3-17131-00-00 |
from US $58.84 |
||
|
4
|
4
23K-E7151-00-00 Gear, 5Th Pinion5TH PINION |
23K-E7151-00-00 |
US $47.47 |
||
| replacement | |||||
|
4
|
4
4J3-17151-01-00 Gear, 5Th Pinion (23T)5TH PINION |
4J3-17151-01-00 |
from US $51.88 |
||
|
5
|
5
23K-E7161-00-00 Gear, 6Th Pinion6TH PINION |
23K-E7161-00-00 |
US $51.84 |
||
| replacement | |||||
|
5
|
5
4J3-17161-00-00 Gear, 6Th Pinion (25T)6TH PINION |
4J3-17161-00-00 |
from US $54.36 |
||
|
6
|
6
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
7
|
7
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
8
|
8
23K-E7421-00-00
Axle, Drive
|
23K-E7421-00-00 |
— | ||
|
9
|
9
5L9-E7211-00-00
Gear, 1St Wheel
1ST WHEEL |
5L9-E7211-00-00 |
— | ||
|
10
|
10
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
10
|
10
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
11
|
11
2H3-E7427-00-00 Plate, Side 1 |
2H3-E7427-00-00 |
US $5.29 |
||
| replacement | |||||
|
11
|
11
164-18561-00-00 Plate, Side 1 |
164-18561-00-00 |
from US $3.26 |
||
|
12
|
12
23K-E7221-00-00 Gear, 2Nd Wheel2ND WHEEL |
23K-E7221-00-00 |
US $23.83 |
||
|
13
|
13
4J3-17231-00-00 Gear, 3Rd Wheel3RD WHEEL |
4J3-17231-00-00 |
from US $63.02 |
||
|
14
|
14
4J3-17241-00-00 Gear, 4Th Wheel4TH WHEEL |
4J3-17241-00-00 |
from US $88.76 |
||
|
15
|
15
23K-E7251-00-00 Gear, 5Th Wheel5TH WHEEL |
23K-E7251-00-00 |
US $65.68 |
||
| replacement | |||||
|
15
|
15
4J3-17251-00-00 Gear, 5Th Wheel (22T)5TH WHEEL |
4J3-17251-00-00 |
from US $67.57 |
||
|
16
|
16
23K-E7261-00-00 Gear, 6Th Wheel6TH WHEEL |
23K-E7261-00-00 |
US $64.40 |
||
| replacement | |||||
|
16
|
16
4J3-17261-00-00 Gear, 6Th Wheel (21T)6TH WHEEL |
4J3-17261-00-00 |
from US $67.57 |
||
|
17
|
17
90201-22555-00 Washer, Plate |
90201-22555-00 |
from US $1.70 |
||
|
18
|
18
90209-18135-00 Washer |
90209-18135-00 |
from US $1.84 |
||
|
19
|
19
934-40208-00-09 Circlip |
934-40208-00-09 |
US $0.47 |
||
| replacement | |||||
|
19
|
19
934-40208-00-00 Circlip |
934-40208-00-00 |
US $0.70 |
||
|
20
|
20
93311-31567-00 Bearing |
93311-31567-00 |
from US $22.82 |
||
|
21
|
21
93306-30439-00 Bearing (4Ed)4ED |
93306-30439-00 |
from US $26.21 |
||
| replacement | |||||
|
21
|
21
933-06304-42-00 Bearing4ED |
933-06304-42-00 |
from US $26.21 |
||
|
22
|
22
5L9-E7471-00-00 Plate, Cover |
5L9-E7471-00-00 |
US $5.78 |
||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
23
|
23
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
24
|
24
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
24
|
24
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
25
|
25
934-50520-10-00 Circlip |
934-50520-10-00 |
US $2.60 |
||
|
26
|
26
93102-28023-00 Oil SealOil seal (sc-28-52-6) |
93102-28023-00 |
from US $7.23 |
||
|
27
|
27
93311-31567-00 Bearing |
93311-31567-00 |
from US $22.82 |
||
|
28
|
28
2H3-E7461-40-00 Sprocket, Drive (14T)14T |
2H3-E7461-40-00 |
US $14.18 |
||
| replacement | |||||
|
28
|
28
938-22140-43-00 Sprocket, Drive (5N0-17461-40-014T |
938-22140-43-00 |
from US $24.68 |
||
|
29
|
29
2H3-E7462-00-00 Collar, Distance |
2H3-E7462-00-00 |
US $24.37 |
||
|
30
|
30
90179-16018-00 Nut |
90179-16018-00 |
from US $3.26 |
||
| replacement | |||||
|
30
|
30
90179-16226-00 Nut (1L8) |
90179-16226-00 |
from US $2.66 |
||
|
31
|
31
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
