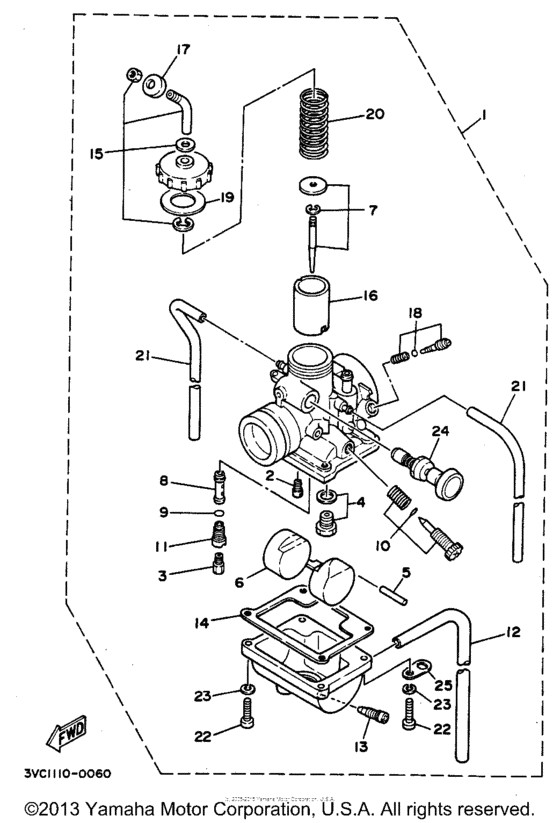

Carburetor Diagram Yamaha RT180
- Year
- 1991
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-14101-00-00 Carburetor Assembly 1 |
3VC-14101-00-00 |
US $397.46 |
||
|
2
|
2
260-14142-27-00 Jet, Pilot# 27.5 |
260-14142-27-00 |
from US $11.29 |
||
|
3
|
3
137-14143-26-A0 Jet, Main #130Jet, main (130) |
137-14143-26-A0 |
from US $9.95 |
||
|
4
|
4
2MW-14107-25-00 Needle Valve Set |
2MW-14107-25-00 |
US $48.92 |
||
|
5
|
5
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
6
|
6
314-14185-00-00 Float |
314-14185-00-00 |
from US $75.33 |
||
|
7
|
7
3VC-1490J-00-00
Needle Set
|
3VC-1490J-00-00 |
— | ||
|
8
|
8
2F5-14141-42-00 Nozzle, Main |
2F5-14141-42-00 |
US $26.42 |
||
|
9
|
9
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $10.66 |
||
|
10
|
10
18G-14103-00-00 Throttle Screw Set |
18G-14103-00-00 |
from US $14.31 |
||
|
11
|
11
2N4-14145-00-00 Setter, Needle Jet |
2N4-14145-00-00 |
from US $19.55 |
||
|
12
|
12
58W-14197-00-00 Hose (L460) |
58W-14197-00-00 |
from US $4.39 |
||
| replacement | |||||
|
12
|
12
90445-083J5-00 Hose (L460) |
90445-083J5-00 |
from US $3.32 |
||
|
13
|
13
12R-14191-00-00 Plug, Drain |
12R-14191-00-00 |
from US $8.64 |
||
|
14
|
14
304-14184-00-00 Gasket, Float Chamber |
304-14184-00-00 |
from US $2.98 |
||
|
15
|
15
10X-14106-00-00 Cable Adjust Screw Set |
10X-14106-00-00 |
from US $27.34 |
||
|
16
|
16
314-14112-30-00
Valve, Throttle 1
|
314-14112-30-00 |
— | ||
|
17
|
17
1M1-14169-00-00 Cap |
1M1-14169-00-00 |
from US $7.97 |
||
| replacement | |||||
|
17
|
17
3X3-14169-00-00 Cap |
3X3-14169-00-00 |
from US $13.60 |
||
|
18
|
18
10W-14104-00-00 Air Screw Set |
10W-14104-00-00 |
from US $16.47 |
||
|
19
|
19
2A6-14126-00-00 Gasket |
2A6-14126-00-00 |
from US $18.14 |
||
|
20
|
20
2V0-14131-00-00 Spring, Throttle Valve |
2V0-14131-00-00 |
from US $11.11 |
||
|
21
|
21
23F-14197-00-00 Pipe, Airvent |
23F-14197-00-00 |
from US $15.58 |
||
|
22
|
22
98511-04016-00 Screw, Pan Head |
98511-04016-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
23
|
23
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
24
|
24
4U5-14171-00-00 Plunger, Starter |
4U5-14171-00-00 |
from US $48.36 |
||
|
25
|
25
132-14146-00-00 Plate |
132-14146-00-00 |
from US $7.65 |
||
