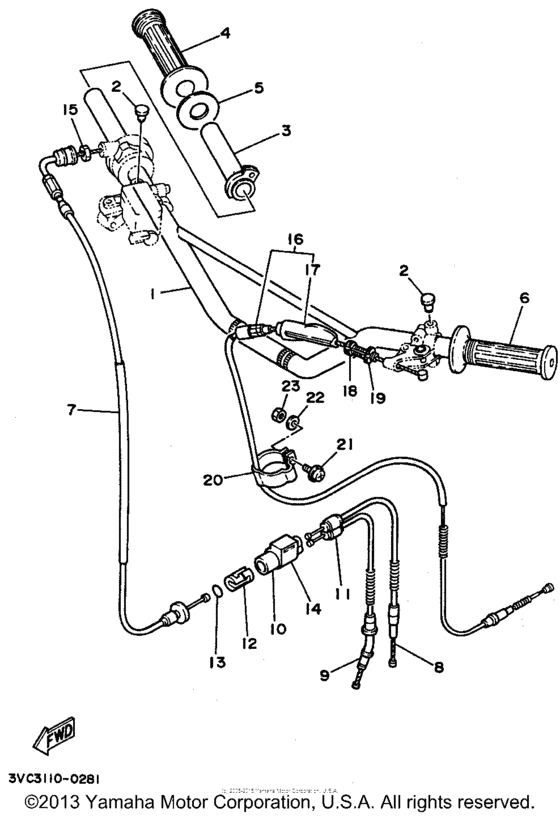

Handlebar - cable Diagram Yamaha RT180
- Year
- 1991
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-F6111-00-00
Handlebar
|
3VC-F6111-00-00 |
— | ||
|
2
|
2
90338-09012-00 Plug |
90338-09012-00 |
from US $3.12 |
||
|
3
|
3
5L9-F6243-00-00 Tube, Throttle Guide |
5L9-F6243-00-00 |
from US $4.37 |
||
| replacement | |||||
|
3
|
3
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
4
|
4
5L9-F6242-00-00
Grip Rh
RH |
5L9-F6242-00-00 |
— | ||
| replacements | |||||
|
4
|
4
5L9-F6242-01-00
TOOL KIT
RH |
5L9-F6242-01-00 |
— | ||
|
4
|
4
1A0-26242-01-00 Grip Rh (R.h.)RH |
1A0-26242-01-00 |
from US $13.46 |
||
|
5
|
5
5L9-F6249-00-00 Ring, Leaf |
5L9-F6249-00-00 |
from US $1.53 |
||
| replacements | |||||
|
5
|
5
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
5
|
5
5RM-F6249-00-00 Ring, Leaf |
5RM-F6249-00-00 |
from US $2.52 |
||
|
6
|
6
5L9-F6241-00-00 Grip LhLH L.H. |
5L9-F6241-00-00 |
US $30.74 |
||
| replacement | |||||
|
6
|
6
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $15.58 |
||
|
7
|
7
5L9-F6311-01-00
Cable, Throttle 1
|
5L9-F6311-01-00 |
— | ||
|
8
|
8
5L9-F6312-02-00
Cable, Throttle 2
|
5L9-F6312-02-00 |
— | ||
|
9
|
9
5L9-F6321-03-00 Cable, Pump |
5L9-F6321-03-00 |
US $49.90 |
||
|
10
|
10
5L9-F6261-00-00
Connector, Cable
|
5L9-F6261-00-00 |
— | ||
|
11
|
11
5L9-F6272-00-00
Cap
|
5L9-F6272-00-00 |
— | ||
| replacement | |||||
|
11
|
11
437-26272-00-00
Cap
|
437-26272-00-00 |
— | ||
|
12
|
12
5L9-F6263-00-00 Piece, Connector |
5L9-F6263-00-00 |
US $6.21 |
||
| replacement | |||||
|
12
|
12
5L9-F6263-01-00 Piece, Connecting |
5L9-F6263-01-00 |
US $1.30 |
||
|
13
|
13
93210-10118-00 O-Ring |
93210-10118-00 |
from US $3.40 |
||
|
14
|
14
5L9-F6339-00-00
Guide, Wire
|
5L9-F6339-00-00 |
— | ||
|
15
|
15
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
16
|
16
5L9-F6335-01-00
Cable, clutch
|
5L9-F6335-01-00 |
— | ||
|
17
|
17
5L9-F6372-10-00 Cover, Handle Lever 1 |
5L9-F6372-10-00 |
US $6.05 |
||
| replacement | |||||
|
17
|
17
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
18
|
18
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
18
|
18
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
19
|
19
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
19
|
19
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
20
|
20
5L9-F6397-00-00 Band |
5L9-F6397-00-00 |
US $0.76 |
||
|
21
|
21
976-02052-18-09
Screw, Pan Head With Washer
|
976-02052-18-09 |
— | ||
|
22
|
22
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
23
|
23
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
