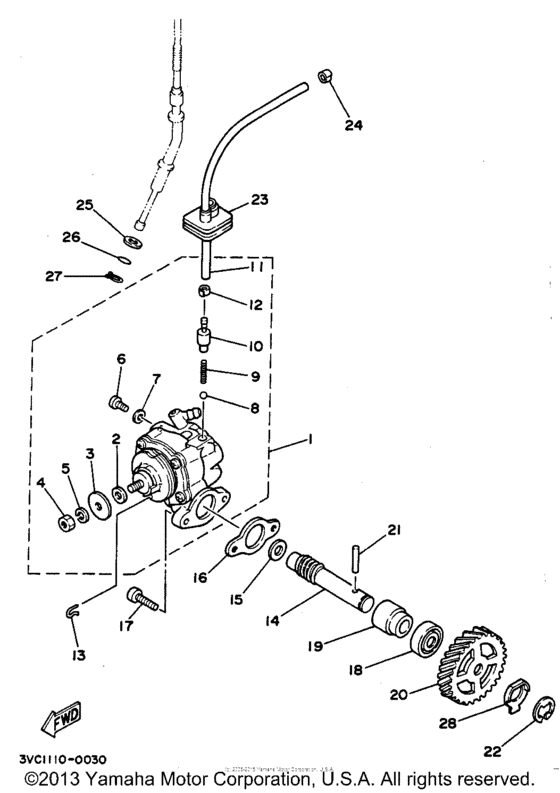

Oil pump Diagram Yamaha RT180
- Year
- 1991
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-13101-01-00 Oil Pump Assembly |
525-13101-01-00 |
from US $272.34 |
||
|
2
|
2
137-13137-00-10 Shim (T=1.0)UN |
137-13137-00-10 |
from US $3.26 |
||
|
3
|
3
137-13138-01-00 Plate, Adjusting |
137-13138-01-00 |
from US $7.93 |
||
|
4
|
4
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
5
|
5
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
6
|
6
989-01040-08-00
Screw, Bind
|
989-01040-08-00 |
— | ||
| replacement | |||||
|
6
|
6
98980-04008-00 Screw, Bind |
98980-04008-00 |
from US $1.21 |
||
|
7
|
7
90430-04004-00 Gasket |
90430-04004-00 |
from US $1.28 |
||
|
8
|
8
93505-32002-00 Ball |
93505-32002-00 |
from US $1.84 |
||
|
9
|
9
90501-02018-00 Spring, Compression |
90501-02018-00 |
from US $3.97 |
||
|
10
|
10
402-13552-00-00 Nozzle |
402-13552-00-00 |
from US $9.07 |
||
|
11
|
11
90445-05278-00 Hose (L200) |
90445-05278-00 |
from US $2.98 |
||
| replacements | |||||
|
11
|
11
904-4505N-13-00 Hose (L200) |
904-4505N-13-00 |
from US $1.34 |
||
|
11
|
11
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $4.34 |
||
|
12
|
12
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
13
|
13
2H3-E3133-00-00 Clip |
2H3-E3133-00-00 |
US $6.19 |
||
|
14
|
14
2H3-E3175-01-00 Shaft, Worm |
2H3-E3175-01-00 |
US $33.59 |
||
|
15
|
15
90201-08624-00 Washer, Plate |
90201-08624-00 |
from US $1.70 |
||
|
16
|
16
502-E3116-00-00 Gasket, Pump Case |
502-E3116-00-00 |
US $0.59 |
||
|
17
|
17
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
17
|
17
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
18
|
18
93101-10002-00 Oil Seal |
93101-10002-00 |
from US $2.32 |
||
|
19
|
19
2H3-E3176-00-00 Metal, Worm Shaft Outer |
2H3-E3176-00-00 |
US $4.01 |
||
|
20
|
20
23K-E3178-00-00
Gear, Pump Drive
|
23K-E3178-00-00 |
— | ||
|
21
|
21
91609-25020-00
Pin, Spring
|
91609-25020-00 |
— | ||
|
22
|
22
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
23
|
23
5L9-E3174-00-00
Holder, Oil Pipe
|
5L9-E3174-00-00 |
— | ||
|
24
|
24
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
25
|
25
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
26
|
26
932-10078-00-09
O-Ring
|
932-10078-00-09 |
— | ||
| replacement | |||||
|
26
|
26
93210-07100-00 O-Ring |
93210-07100-00 |
from US $1.34 |
||
|
27
|
27
90468-08086-00 Clip |
90468-08086-00 |
from US $2.55 |
||
|
28
|
28
90215-10253-00 Washer, Lock |
90215-10253-00 |
US $9.49 |
||
