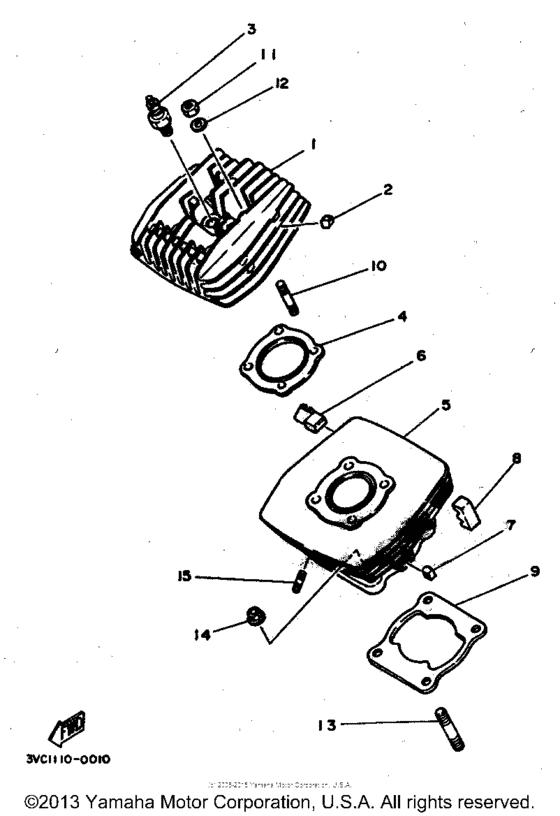

Cylinder Diagram Yamaha RT180
- Year
- 1995
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5L9-E1111-00-00
Head, Cylinder 1
|
5L9-E1111-00-00 |
— | ||
|
2
|
2
5L9-E1161-00-00 Absorber 1 |
5L9-E1161-00-00 |
US $3.45 |
||
|
3
|
3
NGK-B8ES0-00-00
B8Es Ngk Splug 10P
B8ES UR |
NGK-B8ES0-00-00 |
— | ||
| replacements | |||||
|
3
|
3
B8E-S0000-00-00 UNI CVR XA800A/ XA12B8ES UR |
B8E-S0000-00-00 |
US $4.23 |
||
|
3
|
3
BR8-ES000-00-00 Spark plug BR8ESB8ES UR |
BR8-ES000-00-00 |
US $20.32 |
||
|
4
|
4
3V9-E1181-00-00
Gasket, Cylinder Head 1
|
3V9-E1181-00-00 |
— | ||
|
5
|
5
5L9-11311-00-00
Cylinder 1
|
5L9-11311-00-00 |
— | ||
|
6
|
6
5L9-E1129-00-00 Absorber 5 |
5L9-E1129-00-00 |
US $2.65 |
||
|
7
|
7
5L9-E1161-00-00 Absorber 1 |
5L9-E1161-00-00 |
US $3.45 |
||
|
8
|
8
5L9-E1127-00-00
Absorber 3
|
5L9-E1127-00-00 |
— | ||
|
9
|
9
3VC-11351-00-00 Gasket, Cylinder |
3VC-11351-00-00 |
from US $6.32 |
||
|
10
|
10
901-16088-14-09 Bolt, Stud |
901-16088-14-09 |
US $10.64 |
||
| replacement | |||||
|
10
|
10
901-1608W-09-00 Stud Bolt |
901-1608W-09-00 |
US $12.06 |
||
|
11
|
11
901-79088-01-09
Nut (90179-08801-00)
90179-08801-00 |
901-79088-01-09 |
— | ||
| replacement | |||||
|
11
|
11
901-7908W-05-09
Nut (90179-08801-00)
90179-08801-00 |
901-7908W-05-09 |
— | ||
|
12
|
12
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
13
|
13
956-17106-25-00 Bolt, Stud |
956-17106-25-00 |
US $3.98 |
||
|
14
|
14
901-79108-06-09 Nut |
901-79108-06-09 |
US $1.51 |
||
| replacement | |||||
|
14
|
14
901-7910W-07-00 Nut |
901-7910W-07-00 |
US $0.80 |
||
|
15
|
15
90116-06016-00 Bolt, Stud |
90116-06016-00 |
from US $3.40 |
||
