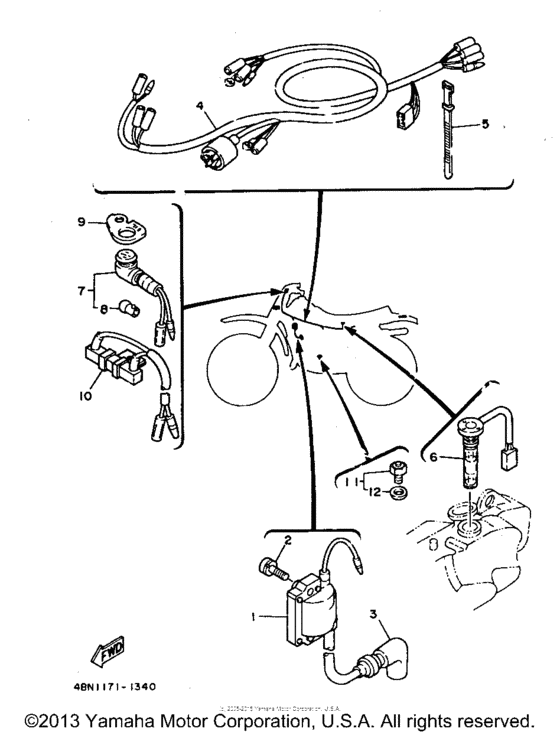

Electrical (1) Diagram Yamaha RT180
- Year
- 1995
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3T2-82310-M0-00 Ignition Coil Assembly |
3T2-82310-M0-00 |
from US $71.69 |
||
|
2
|
2
976-02061-20-09
Screw, Pan Head With Washer
|
976-02061-20-09 |
— | ||
|
3
|
3
81E-82370-20-00 Plug Cap Assembly |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
3
|
3
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
4
|
4
3VC-H2590-01-00
Wire Harness Assembly
|
3VC-H2590-01-00 |
— | ||
|
5
|
5
5L9-H3936-00-00
Band, Switch Cord
|
5L9-H3936-00-00 |
— | ||
|
6
|
6
23K-H5720-00-00 Oil Level Gauge Assy |
23K-H5720-00-00 |
US $59.92 |
||
| replacement | |||||
|
6
|
6
5GP-85720-00-00 Oil Level Gauge Assy |
5GP-85720-00-00 |
from US $31.74 |
||
|
7
|
7
52G-83530-00-00 Pilot Light Assy |
52G-83530-00-00 |
from US $20.90 |
||
| replacement | |||||
|
7
|
7
52G-83530-10-00 Pilot Light Assy |
52G-83530-10-00 |
from US $25.50 |
||
|
8
|
8
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
8
|
8
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
9
|
9
3VC-H3574-00-00 Bracket, Indicator Light 1 |
3VC-H3574-00-00 |
US $1.80 |
||
|
10
|
10
3VC-85370-00-00
Resistor Assembly
|
3VC-85370-00-00 |
— | ||
|
11
|
11
502-H2540-00-00 Neutral Switch Assy |
502-H2540-00-00 |
US $27.13 |
||
| replacement | |||||
|
11
|
11
5HH-H2540-02-00 Neutral Switch Assy |
5HH-H2540-02-00 |
from US $20.93 |
||
|
12
|
12
904-30098-02-09
Gasket
|
904-30098-02-09 |
— | ||
