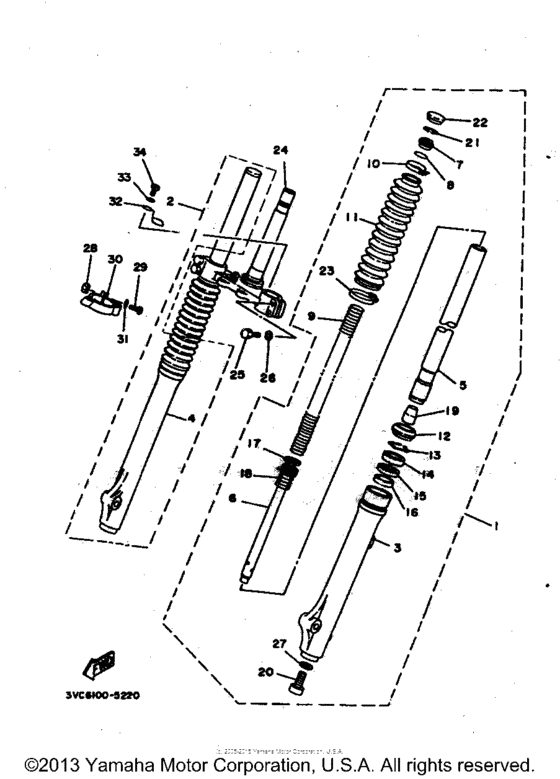

Front fork Diagram Yamaha RT180
- Year
- 1995
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TW-F3102-F0-00 Front Fork Assembly (L.h) |
2TW-F3102-F0-00 |
US $693.83 |
||
|
2
|
2
2TW-F3103-F0-00 Front Fork Assembly (R.h) |
2TW-F3103-F0-00 |
US $560.66 |
||
|
3
|
3
2TW-F3126-A0-00
Tube, Outer (Left)
|
2TW-F3126-A0-00 |
— | ||
|
4
|
4
2TW-F3136-A0-00
Tube, Outer (Right)
|
2TW-F3136-A0-00 |
— | ||
|
5
|
5
2TW-F3110-A0-00
Inner Tube Comp.1
|
2TW-F3110-A0-00 |
— | ||
|
6
|
6
2TW-F3171-A0-00 Piston, Front Fork |
2TW-F3171-A0-00 |
US $36.13 |
||
|
7
|
7
2TW-F3111-A0-00 Bolt, Cap |
2TW-F3111-A0-00 |
US $23.66 |
||
|
8
|
8
35E-23114-00-00 O-Ring |
35E-23114-00-00 |
from US $3.12 |
||
| replacement | |||||
|
8
|
8
93210-24709-00 O-Ring(1Hx) |
93210-24709-00 |
from US $3.12 |
||
|
9
|
9
2TW-F3141-A0-00 Spring, Front Fork |
2TW-F3141-A0-00 |
US $57.40 |
||
|
10
|
10
4AN-F3192-00-00 Band |
4AN-F3192-00-00 |
US $10.82 |
||
|
11
|
11
2TW-F3191-F0-00
Boot
|
2TW-F3191-F0-00 |
— | ||
|
12
|
12
2TW-F3144-A0-00 Seal, Dust |
2TW-F3144-A0-00 |
from US $29.47 |
||
|
13
|
13
34X-23156-00-00 Ring, Snap |
34X-23156-00-00 |
from US $6.52 |
||
|
14
|
14
2TW-F3145-A0-00 Oil Seal |
2TW-F3145-A0-00 |
from US $21.54 |
||
|
15
|
15
10V-23147-00-00 O-Ring |
10V-23147-00-00 |
from US $16.72 |
||
|
16
|
16
10V-23125-00-00
Metal, Slide 1
|
10V-23125-00-00 |
— | ||
|
17
|
17
1T4-23157-01-00
Ring, Piston Front Fork (2F3-
2F3- |
1T4-23157-01-00 |
— | ||
|
18
|
18
2TW-F3151-A0-00
Spring, Rebound
|
2TW-F3151-A0-00 |
— | ||
|
19
|
19
4AN-F3166-00-00 Spacer, Oil Lock |
4AN-F3166-00-00 |
from US $10.44 |
||
|
20
|
20
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
21
|
21
1UA-23153-00-00 Ring, Snap |
1UA-23153-00-00 |
from US $6.59 |
||
|
22
|
22
2TW-F3168-A0-00 Cap, Front Fork |
2TW-F3168-A0-00 |
from US $11 |
||
|
23
|
23
4AN-F3192-10-00 Band |
4AN-F3192-10-00 |
from US $2.47 |
||
|
24
|
24
2TW-F3340-01-33
Under Bracket Comp
|
2TW-F3340-01-33 |
— | ||
| replacement | |||||
|
24
|
24
2TW-F3340-10-35
Under Bracket
|
2TW-F3340-10-35 |
— | ||
|
25
|
25
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
25
|
25
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
25
|
25
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
25
|
25
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
26
|
26
92902-08100-00 Washer, Spring |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
26
|
26
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
27
|
27
902-01108-01-09 Gasket |
902-01108-01-09 |
US $14.24 |
||
| replacement | |||||
|
27
|
27
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
28
|
28
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
29
|
29
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
30
|
30
4AN-F3317-00-00 Holder, Cable |
4AN-F3317-00-00 |
US $4.57 |
||
| replacement | |||||
|
30
|
30
34X-23317-00-00 Holder, Cable |
34X-23317-00-00 |
from US $6.52 |
||
|
31
|
31
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
32
|
32
4AN-F331E-00-00 Guide, Cable |
4AN-F331E-00-00 |
US $1.75 |
||
|
33
|
33
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
33
|
33
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
34
|
34
985-16060-12-00
Screw, Pan Head(3Xv)
|
985-16060-12-00 |
— | ||
| replacement | |||||
|
34
|
34
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
