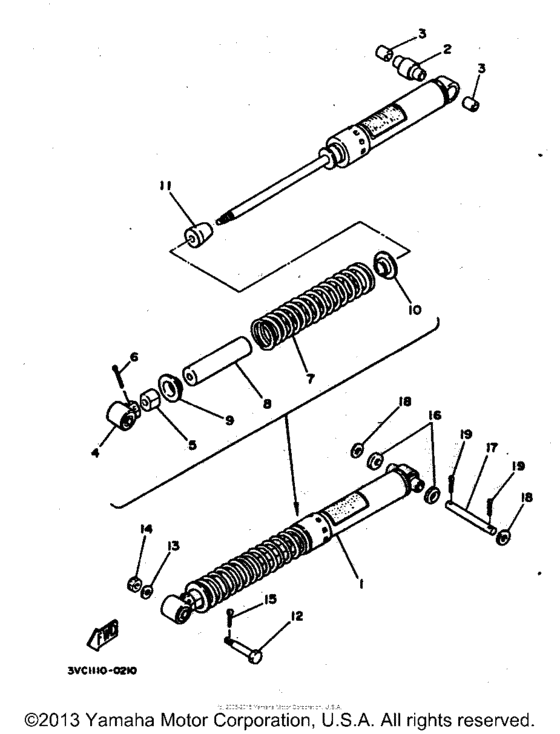

Rear suspension Diagram Yamaha RT180

Year
1995
Sales region
USA
Engine Capacity
180
Model
RT180

Difficulties in parts search?

Parts list
Rear suspension

Difficulties in parts search?

Rear suspension
Description OEM Part # Price
1
1
3VC-F2210-00-00
Shock Absorber Assembly, Rear

3VC-F2210-00-00

replacement
1
1
3VC-F2210-20-00
Shock Absorber Assembly, Rear

3VC-F2210-20-00

2
2

3R4-22226-00-00

Bush, Shock Abs Lwr

3R4-22226-00-00

from US $38.97

3
3

90380-12051-00

Bush, Solid

90380-12051-00

from US $5.67

4
4
1M1-22219-01-00
Bracket, Upper

1M1-22219-01-00

5
5

5L9-F2213-00-00

Seat, Spring Upper

5L9-F2213-00-00

US $29.54

6
6

91401-30040-00

Pin,cotter

91401-30040-00

from US $4.45

replacement
6
6

914-90300-45-00

Pin, Cotter

914-90300-45-00

from US $4.53

7
7
905-01905-14-09
Spring, Compression

905-01905-14-09

8
8
5L9-F2496-00-00
Sleeve, Rod

5L9-F2496-00-00

9
9

5L9-F2214-00-00

Guide, Spring 1

5L9-F2214-00-00

US $15.17

10
10

3VC-F2223-00-00

Seat, Spring Lower

3VC-F2223-00-00

US $18.76

11
11

5L9-F2493-00-00

Stopper, Bump

5L9-F2493-00-00

US $40.12

12
12

90109-10550-00

Bolt

90109-10550-00

from US $8.86

replacement
12
12

90109-10453-00

Bolt (1M1)

90109-10453-00

from US $10.48

13
13
902-02102-00-09
Washer, Wave

902-02102-00-09

14
14

95303-10700-00

Nut

95303-10700-00

US $7.37

replacement
14
14

95380-10700-00

Nut

95380-10700-00

from US $7.37

15
15

914-90200-25-00

Pin. Cotter

914-90200-25-00

from US $1.56

16
16

1W1-22128-00-00

Cover, Thrust 1

1W1-22128-00-00

from US $10.48

17
17

90240-12075-00

Pin, Clevis

90240-12075-00

from US $9.07

18
18

92907-12600-00

Washer, Plate

92907-12600-00

from US $1.42

19
19

914-02300-22-09

Pin, Cotter

914-02300-22-09

US $5.29

replacement
19
19

914-90300-30-00

Pin. Cotter

914-90300-30-00

from US $1.13

Rear suspension Diagram Yamaha RT180 USA 14495736-808753
