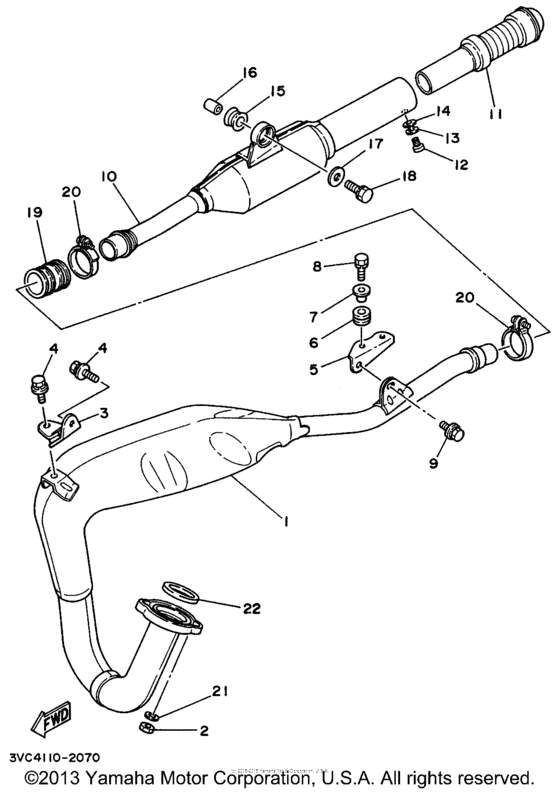

Exhaust Diagram Yamaha RT180
- Year
- 1996
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-E4610-00-00
Exhaust Pipe Assembly 1
|
3VC-E4610-00-00 |
— | ||
|
2
|
2
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
3
|
3
2A6-14772-00-00
Stay, Muffler 2
|
2A6-14772-00-00 |
— | ||
| replacement | |||||
|
3
|
3
2A6-14772-01-00 Stay, Muffler 2 |
2A6-14772-01-00 |
from US $13.24 |
||
|
4
|
4
975-02083-16-09 Bolt, With Washer |
975-02083-16-09 |
US $2.72 |
||
| replacement | |||||
|
4
|
4
975-02086-16-09 Bolt, With Washer |
975-02086-16-09 |
US $2.72 |
||
|
5
|
5
5L9-E4771-00-00
Stay, Muffler 1
|
5L9-E4771-00-00 |
— | ||
|
6
|
6
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
7
|
7
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
7
|
7
90387-06158-00 Collar |
90387-06158-00 |
from US $1.56 |
||
|
8
|
8
975-02064-25-09 Bolt, With Washer |
975-02064-25-09 |
US $2.52 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
9
|
9
975-02086-16-09 Bolt, With Washer |
975-02086-16-09 |
US $2.72 |
||
|
10
|
10
3VC-14753-00-00
Silencer, Exhaust
|
3VC-14753-00-00 |
— | ||
|
11
|
11
1M1-14752-01-00
Pipe, Outlet
|
1M1-14752-01-00 |
— | ||
|
12
|
12
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
13
|
13
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
15
|
15
565-14747-00-00 Damper, Muffler |
565-14747-00-00 |
from US $7.49 |
||
|
16
|
16
903-87082-58-00 Collar |
903-87082-58-00 |
from US $3.40 |
||
|
17
|
17
902-01088-02-09 Washer, Plate |
902-01088-02-09 |
US $1.85 |
||
| replacement | |||||
|
17
|
17
902-01088-02-00 Washer, Plate |
902-01088-02-00 |
US $1.85 |
||
|
18
|
18
975-06084-30-09 Bolt, With Washer |
975-06084-30-09 |
US $1.73 |
||
| replacement | |||||
|
18
|
18
975-06085-12-00 Bolt, With Washer |
975-06085-12-00 |
US $0.59 |
||
|
19
|
19
1W2-14714-00-00 Gasket, Muffler |
1W2-14714-00-00 |
from US $16.88 |
||
|
20
|
20
90460-37026-00 Clamp, Hose |
90460-37026-00 |
from US $4.53 |
||
| replacement | |||||
|
20
|
20
90460-37130-00 Clamp, Hose |
90460-37130-00 |
from US $4.53 |
||
|
21
|
21
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
22
|
22
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.35 |
||
