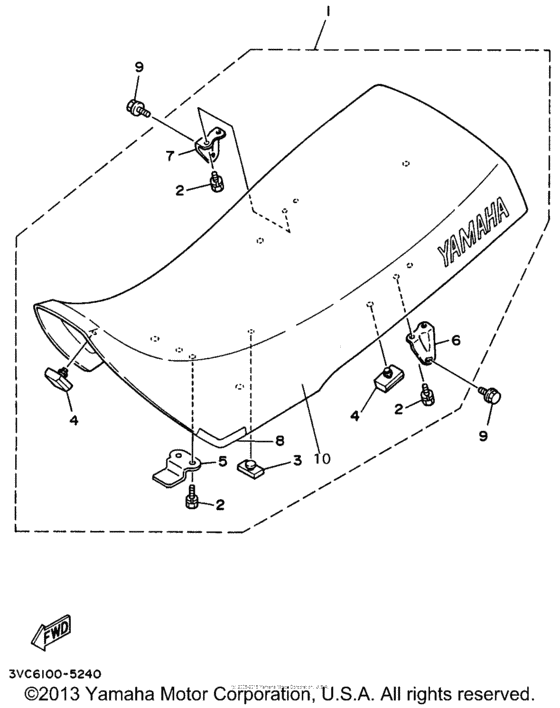

Seat Diagram Yamaha RT180
- Year
- 1996
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-F4770-40-00
Semi-Double Seat Assembly
0EX |
3VC-F4770-40-00 |
— | ||
|
2
|
2
975-02064-12-09 Bolt, With Washer |
975-02064-12-09 |
US $2.52 |
||
| replacement | |||||
|
2
|
2
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
3
|
3
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.10 |
||
|
4
|
4
502-29472-00-00
Pad, Seat
|
502-29472-00-00 |
— | ||
|
5
|
5
2Y0-24748-00-00 Bracket, Seat |
2Y0-24748-00-00 |
US $18.84 |
||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
5L9-F4738-10-00
Bracket, Seat
|
5L9-F4738-10-00 |
— | ||
|
7
|
7
5L9-F4728-10-00 Bracket, Seat |
5L9-F4728-10-00 |
US $5.63 |
||
|
8
|
8
3VC-F473Y-00-00
Damper
|
3VC-F473Y-00-00 |
— | ||
|
9
|
9
975-06085-12-09 Bolt, With Washer |
975-06085-12-09 |
US $1.73 |
||
| replacement | |||||
|
9
|
9
975-06085-12-00 Bolt, With Washer |
975-06085-12-00 |
US $0.59 |
||
|
10
|
10
3VC-F4770-40-00
Semi-Double Seat Assembly
|
3VC-F4770-40-00 |
— | ||
