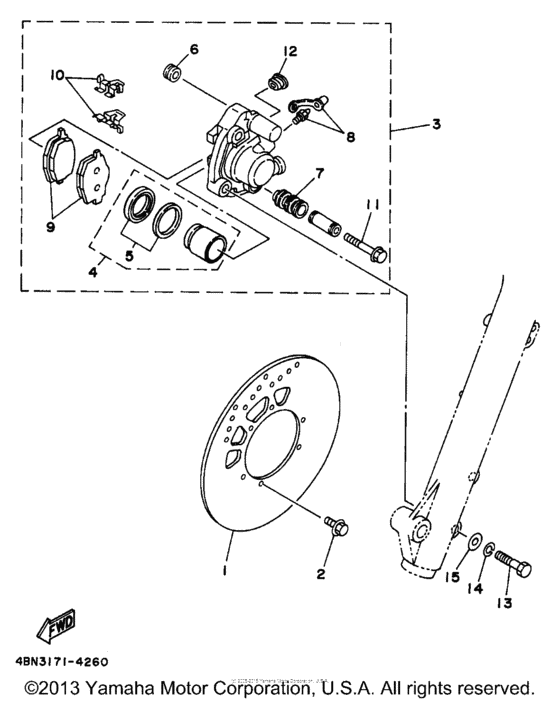

Front brake caliper Diagram Yamaha RT180
- Year
- 1997
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JG-2582T-00-00 Disc, Brake (Left) |
4JG-2582T-00-00 |
from US $71.82 |
||
| replacement | |||||
|
1
|
1
5XT-2582T-00-00 Disc, Brake (Left) |
5XT-2582T-00-00 |
from US $104.44 |
||
|
2
|
2
90109-06823-00
Bolt
|
90109-06823-00 |
— | ||
|
3
|
3
3BN-2580T-10-00 Caliper Assy (Left) |
3BN-2580T-10-00 |
from US $348.55 |
||
| replacement | |||||
|
3
|
3
3BN-2580T-11-00 |
3BN-2580T-11-00 |
US $403.97 |
||
|
4
|
4
34X-W0057-00-00 Piston Assy, Caliper |
34X-W0057-00-00 |
from US $94.23 |
||
|
5
|
5
34X-W0047-00-00 Caliper Seal Kit |
34X-W0047-00-00 |
from US $48.74 |
||
|
6
|
6
5R2-25937-00-00 Boot 2 |
5R2-25937-00-00 |
from US $19.55 |
||
|
7
|
7
34X-25937-00-00 Boot 2 |
34X-25937-00-00 |
from US $19.41 |
||
|
8
|
8
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
8
|
8
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $8.08 |
||
|
9
|
9
3BN-W0045-01-00
Brake Pad Kit
|
3BN-W0045-01-00 |
— | ||
| replacement | |||||
|
9
|
9
3BN-25805-02-00 Brake Pad Kit |
3BN-25805-02-00 |
from US $41.36 |
||
|
10
|
10
34X-25919-00-00 Support, Pad |
34X-25919-00-00 |
from US $36.20 |
||
|
11
|
11
34X-25926-00-00 Bolt |
34X-25926-00-00 |
from US $6.10 |
||
| replacement | |||||
|
11
|
11
5KN-25926-01-00 Bolt |
5KN-25926-01-00 |
from US $8.78 |
||
|
12
|
12
34X-25845-00-00 Cap, Indicator |
34X-25845-00-00 |
from US $7.23 |
||
|
13
|
13
901-0510W-04-00 Bolt |
901-0510W-04-00 |
US $5.90 |
||
| replacements | |||||
|
13
|
13
901-0510W-04-09 Bolt, Washer Based |
901-0510W-04-09 |
US $5.90 |
||
|
13
|
13
90105-10634-00 Bolt, Flange |
90105-10634-00 |
from US $1.84 |
||
|
13
|
13
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.13 |
||
|
13
|
13
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.13 |
||
|
14
|
14
92902-10100-00 Washer, Spring |
92902-10100-00 |
US $1.56 |
||
| replacement | |||||
|
14
|
14
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
15
|
15
92902-10200-00 Washer, Plain |
92902-10200-00 |
US $1.07 |
||
| replacement | |||||
|
15
|
15
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
