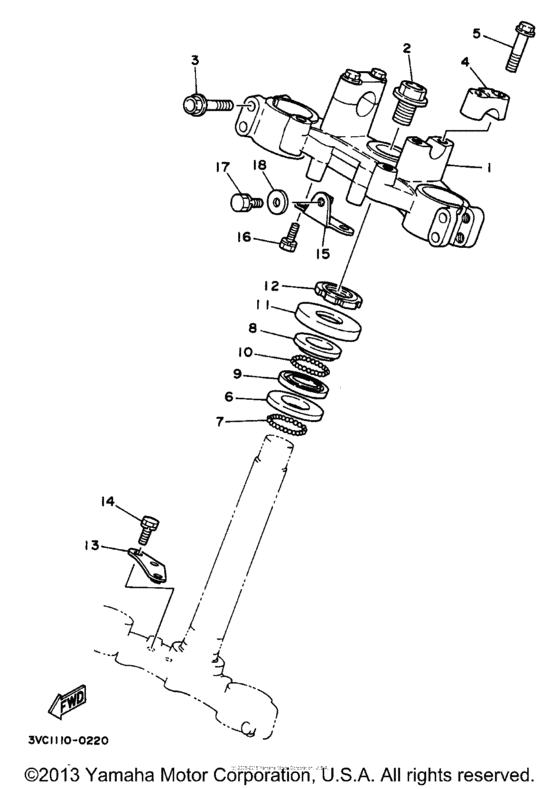

Steering Diagram Yamaha RT180
- Year
- 1997
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TW-F3435-00-AC
Crown, Handle
|
2TW-F3435-00-AC |
— | ||
|
2
|
2
90105-14136-00 Bolt, Flange |
90105-14136-00 |
from US $2.77 |
||
| replacements | |||||
|
2
|
2
901-05142-20-00 Bolt, Flange |
901-05142-20-00 |
from US $3.68 |
||
|
2
|
2
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
3
|
3
95822-08040-00 Bolt, Flange |
95822-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
4
|
4
1E6-23441-10-33 Holder, Handle Upper |
1E6-23441-10-33 |
from US $14.40 |
||
|
5
|
5
95822-08035-00 Bolt, Flange |
95822-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
6
|
6
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
6
|
6
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
7
|
7
93501-04803-00
Ball
|
93501-04803-00 |
— | ||
|
8
|
8
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $8.78 |
||
| replacement | |||||
|
8
|
8
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $6.30 |
||
|
9
|
9
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $7.93 |
||
| replacement | |||||
|
9
|
9
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $7.93 |
||
|
10
|
10
93503-16802-00 Ball |
93503-16802-00 |
from US $1.35 |
||
| replacement | |||||
|
10
|
10
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
11
|
11
5L9-F3416-00-00 Cover, Ball Race 2 |
5L9-F3416-00-00 |
US $24.19 |
||
| replacement | |||||
|
11
|
11
10V-23416-01-00 Cover Ball Race |
10V-23416-01-00 |
from US $14.88 |
||
|
12
|
12
901-7925W-09-00 Nut |
901-7925W-09-00 |
from US $14.29 |
||
| replacement | |||||
|
12
|
12
90179-25W23-00 Nut |
90179-25W23-00 |
from US $14.36 |
||
|
13
|
13
3VC-F3486-00-00 Stay, Plate |
3VC-F3486-00-00 |
US $50.27 |
||
|
14
|
14
97502-06412-00
Bolt, With Washer
|
97502-06412-00 |
— | ||
|
15
|
15
3VC-F3487-00-00
Stay, Plate
|
3VC-F3487-00-00 |
— | ||
|
16
|
16
97502-06412-00
Bolt, With Washer
|
97502-06412-00 |
— | ||
|
17
|
17
97602-06116-00
Screw, Pan Head With Washer
|
97602-06116-00 |
— | ||
| replacement | |||||
|
17
|
17
976-0N061-16-00
Screw, Pan Head With Washer
|
976-0N061-16-00 |
— | ||
|
18
|
18
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
18
|
18
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
