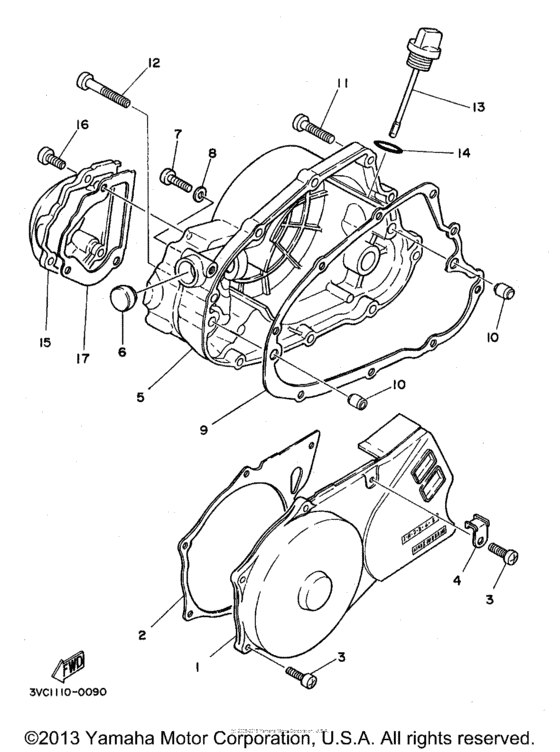

Crankcase cover (1) Diagram Yamaha RT180
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23K-E5411-00-00
Cover, Crankcase 1
|
23K-E5411-00-00 |
— | ||
| replacement | |||||
|
1
|
1
23K-E5411-00-NW
Crankcase Cover 1
|
23K-E5411-00-NW |
— | ||
|
2
|
2
3VC-15455-00-00
Gasket 1
|
3VC-15455-00-00 |
— | ||
| replacement | |||||
|
2
|
2
3VC-15455-01-00 Gasket 1 |
3VC-15455-01-00 |
US $9.29 |
||
|
3
|
3
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
3
|
3
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
4
|
4
5L9-E5484-00-00 Clamp 2 |
5L9-E5484-00-00 |
US $3.47 |
||
|
5
|
5
5L9-E5431-00-00
Cover, Crankcase 3
|
5L9-E5431-00-00 |
— | ||
| replacement | |||||
|
5
|
5
5L9-E5431-00-AC
Cover, Crankcase 3 (5L9-E5431-0
|
5L9-E5431-00-AC |
— | ||
|
6
|
6
903-38190-78-00 301 Plug |
903-38190-78-00 |
US $8.53 |
||
|
7
|
7
925-06060-30-09
Screw, Pan Head
|
925-06060-30-09 |
— | ||
|
8
|
8
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
9
|
9
3VC-15451-00-00 Gasket,crcs Cover |
3VC-15451-00-00 |
from US $14.69 |
||
| replacement | |||||
|
9
|
9
3VC-15451-01-00 Crankcase Cover Gasket |
3VC-15451-01-00 |
US $17.51 |
||
|
10
|
10
918-10020-14-09 Pin, Dowel |
918-10020-14-09 |
US $3.56 |
||
| replacement | |||||
|
10
|
10
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
11
|
11
98506-06025-00 Screw Pan Head |
98506-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
12
|
12
98506-06045-00 Screw Pan Head |
98506-06045-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
98507-06045-00 Screw, Pan Head |
98507-06045-00 |
from US $1.34 |
||
|
13
|
13
401-15362-00-00
Plug, Oil Level
|
401-15362-00-00 |
— | ||
|
14
|
14
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.70 |
||
|
15
|
15
5L9-E5416-00-00 Oil Pump Cover |
5L9-E5416-00-00 |
US $32.08 |
||
| replacement | |||||
|
15
|
15
5L9-E5416-00-AC Oil Pump Cover |
5L9-E5416-00-AC |
US $21.53 |
||
|
16
|
16
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
16
|
16
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
17
|
17
3VC-E5456-00-00 Gasket, Oil Pump Cover 1 |
3VC-E5456-00-00 |
US $2.65 |
||
| replacement | |||||
|
17
|
17
5L9-E5456-00-00 Gasket, Oil Pump Cover 1 |
5L9-E5456-00-00 |
US $0.74 |
||
