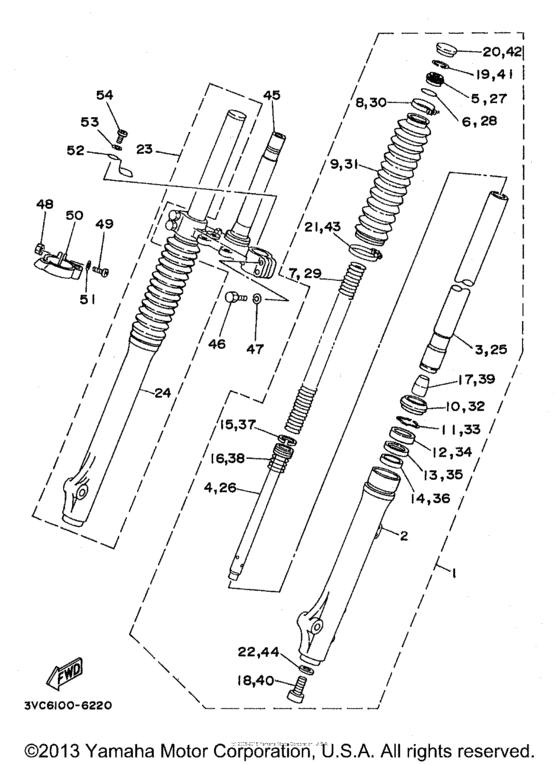

Front fork Diagram Yamaha RT180
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TW-F3102-L0-00
Front Fork Assembly (L.h)
|
2TW-F3102-L0-00 |
— | ||
|
2
|
2
2TW-F3126-A0-00
Tube, Outer (Left)
|
2TW-F3126-A0-00 |
— | ||
|
3
|
3
2TW-F3110-A0-00
Inner Tube Comp.1
|
2TW-F3110-A0-00 |
— | ||
|
4
|
4
2TW-F3171-A0-00 Piston, Front Fork |
2TW-F3171-A0-00 |
US $36.13 |
||
|
5
|
5
2TW-F3111-A0-00 Bolt, Cap |
2TW-F3111-A0-00 |
US $23.66 |
||
|
6
|
6
35E-23114-00-00 O-Ring |
35E-23114-00-00 |
from US $3.12 |
||
| replacement | |||||
|
6
|
6
93210-24709-00 O-Ring(1Hx) |
93210-24709-00 |
from US $3.12 |
||
|
7
|
7
2TW-F3141-A0-00 Spring, Front Fork |
2TW-F3141-A0-00 |
US $57.40 |
||
|
8
|
8
4AN-F3192-00-00 Band |
4AN-F3192-00-00 |
US $10.82 |
||
|
9
|
9
2TW-F3191-L0-00 Boot |
2TW-F3191-L0-00 |
US $72.47 |
||
|
10
|
10
2TW-F3144-A0-00 Seal, Dust |
2TW-F3144-A0-00 |
from US $29.47 |
||
|
11
|
11
34X-23156-00-00 Ring, Snap |
34X-23156-00-00 |
from US $6.52 |
||
|
12
|
12
2TW-F3145-A0-00 Oil Seal |
2TW-F3145-A0-00 |
from US $21.54 |
||
|
13
|
13
10V-23147-00-00 O-Ring |
10V-23147-00-00 |
from US $16.72 |
||
|
14
|
14
10V-23125-00-00
Metal, Slide 1
|
10V-23125-00-00 |
— | ||
|
15
|
15
1T4-23157-01-00
Ring, Piston Front Fork (2F3-
2F3- |
1T4-23157-01-00 |
— | ||
|
16
|
16
2TW-F3151-A0-00
Spring, Rebound
|
2TW-F3151-A0-00 |
— | ||
|
17
|
17
4AN-F3166-00-00 Spacer, Oil Lock |
4AN-F3166-00-00 |
from US $10.44 |
||
|
18
|
18
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
19
|
19
1UA-23153-00-00 Ring, Snap |
1UA-23153-00-00 |
from US $6.59 |
||
|
20
|
20
2TW-F3168-A0-00 Cap, Front Fork |
2TW-F3168-A0-00 |
from US $11 |
||
|
21
|
21
4AN-F3192-10-00 Band |
4AN-F3192-10-00 |
from US $2.47 |
||
|
22
|
22
90201-10801-00 Washer, Plate |
90201-10801-00 |
from US $6.23 |
||
|
23
|
23
2TW-F3103-L0-00 Front Fork Assembly (R.h) |
2TW-F3103-L0-00 |
US $560.66 |
||
|
24
|
24
2TW-F3136-A0-00
Tube, Outer (Right)
|
2TW-F3136-A0-00 |
— | ||
|
25
|
25
2TW-F3110-A0-00
Inner Tube Comp.1
|
2TW-F3110-A0-00 |
— | ||
|
26
|
26
2TW-F3171-A0-00 Piston, Front Fork |
2TW-F3171-A0-00 |
US $36.13 |
||
|
27
|
27
2TW-F3111-A0-00 Bolt, Cap |
2TW-F3111-A0-00 |
US $23.66 |
||
|
28
|
28
35E-23114-00-00 O-Ring |
35E-23114-00-00 |
from US $3.12 |
||
| replacement | |||||
|
28
|
28
93210-24709-00 O-Ring(1Hx) |
93210-24709-00 |
from US $3.12 |
||
|
29
|
29
2TW-F3141-A0-00 Spring, Front Fork |
2TW-F3141-A0-00 |
US $57.40 |
||
|
30
|
30
4AN-F3192-00-00 Band |
4AN-F3192-00-00 |
US $10.82 |
||
|
31
|
31
2TW-F3191-L0-00 Boot |
2TW-F3191-L0-00 |
US $72.47 |
||
|
32
|
32
2TW-F3144-A0-00 Seal, Dust |
2TW-F3144-A0-00 |
from US $29.47 |
||
|
33
|
33
34X-23156-00-00 Ring, Snap |
34X-23156-00-00 |
from US $6.52 |
||
|
34
|
34
2TW-F3145-A0-00 Oil Seal |
2TW-F3145-A0-00 |
from US $21.54 |
||
|
35
|
35
10V-23147-00-00 O-Ring |
10V-23147-00-00 |
from US $16.72 |
||
|
36
|
36
10V-23125-00-00
Metal, Slide 1
|
10V-23125-00-00 |
— | ||
|
37
|
37
1T4-23157-01-00
Ring, Piston Front Fork (2F3-
2F3- |
1T4-23157-01-00 |
— | ||
|
38
|
38
2TW-F3151-A0-00
Spring, Rebound
|
2TW-F3151-A0-00 |
— | ||
|
39
|
39
4AN-F3166-00-00 Spacer, Oil Lock |
4AN-F3166-00-00 |
from US $10.44 |
||
|
40
|
40
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
41
|
41
1UA-23153-00-00 Ring, Snap |
1UA-23153-00-00 |
from US $6.59 |
||
|
42
|
42
2TW-F3168-A0-00 Cap, Front Fork |
2TW-F3168-A0-00 |
from US $11 |
||
|
43
|
43
4AN-F3192-10-00 Band |
4AN-F3192-10-00 |
from US $2.47 |
||
|
44
|
44
90201-10801-00 Washer, Plate |
90201-10801-00 |
from US $6.23 |
||
|
45
|
45
2TW-F3340-01-33
Under Bracket Comp
|
2TW-F3340-01-33 |
— | ||
| replacement | |||||
|
45
|
45
2TW-F3340-10-35
Under Bracket
|
2TW-F3340-10-35 |
— | ||
|
46
|
46
973-22080-30-09 Bolt |
973-22080-30-09 |
US $2.83 |
||
| replacements | |||||
|
46
|
46
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
46
|
46
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
47
|
47
92902-08100-00 Washer, Spring |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
47
|
47
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
48
|
48
953-02056-00-09 Nut |
953-02056-00-09 |
US $6.35 |
||
| replacement | |||||
|
48
|
48
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
49
|
49
98502-05020-00 Screw, Pan Head |
98502-05020-00 |
US $1.84 |
||
| replacement | |||||
|
49
|
49
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
50
|
50
4AN-F3317-00-00 Holder, Cable |
4AN-F3317-00-00 |
US $4.57 |
||
| replacement | |||||
|
50
|
50
34X-23317-00-00 Holder, Cable |
34X-23317-00-00 |
from US $6.52 |
||
|
51
|
51
929-02052-00-09
Washer
|
929-02052-00-09 |
— | ||
|
52
|
52
4AN-F331E-00-00 Guide, Cable |
4AN-F331E-00-00 |
US $1.75 |
||
|
53
|
53
929-06061-00-09 Washer, Spring |
929-06061-00-09 |
US $6.35 |
||
| replacement | |||||
|
53
|
53
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
54
|
54
98506-06012-00 Screw Pan Head |
98506-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
54
|
54
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
